Pan/Tilt/Zoom
Operate 7
3 Infinite Rotation Knobs
Multiple Control Interfaces
VISCA Pelco-D/P Protocols
1-Year Warranty

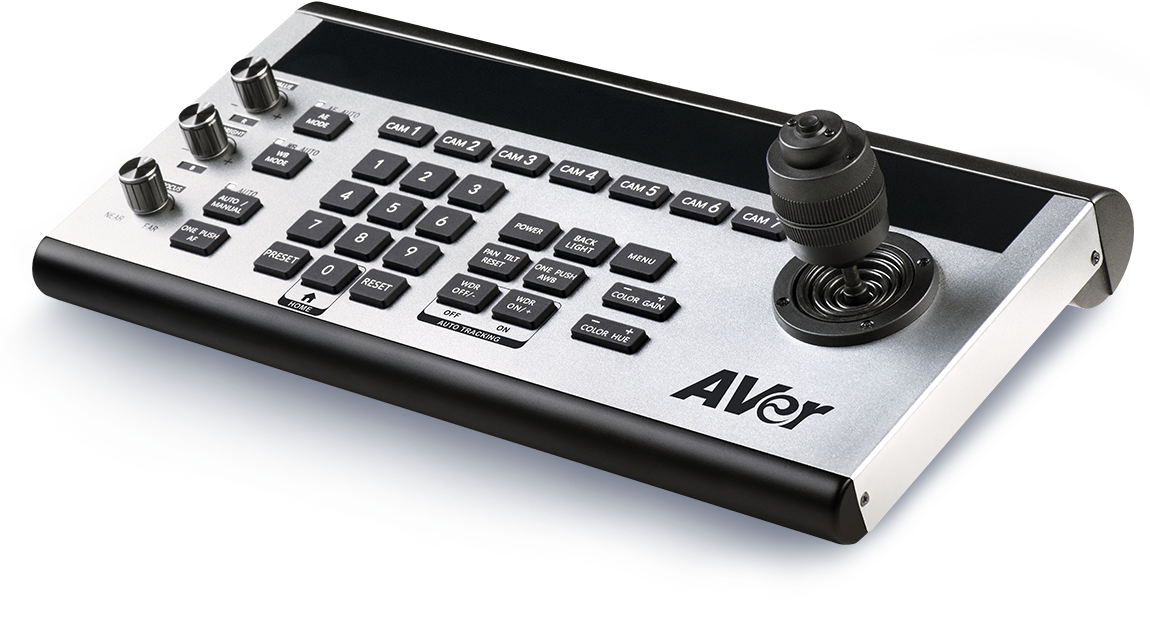

An all-in-one controller to meet your unique production needs
- Easy to use joystick for pan/tilt/zoom control
- Manage multiple cameras to deliver big production experiences
- Intuitive control buttons with preset functions
- Adjust brightness, color and focus on the fly
- Simple management for any camera operator
- Smart, light and portable wherever you need it
Pro evaluation program
Buying a professional video system is no small task. Let us make evaluating our Auto Tracking and PTZ cameras a little easier. Our no risk 30 day Pro Evaluation Program allows you to try out any of our Pro AV cameras before you buy. If you wish to purchase we will work with a partner to fulfill your order. If not, we provide return shipping at no cost.
Inquiry hereSpecifications
Top
Back
I/O interface
| Communication | Baud rate | |
|---|---|---|
| RS-485, RS-422, RS-232, IP, Micro USB for firmware upgrades | 2400, 4800, 9600, 19200, 38400 bps |
User interface
| Display | Rotation button | Camera shortcut channel |
|---|---|---|
| OLED display screen | 3 | 7 |
| Joystick | Keyboard | |
| 1 | Backlit keys |
Camera control
| IP Aaddress | UDP port | Cam ID |
|---|---|---|
| Default: 192.168.1.162 / 163 / 164 / 165 / 166 / 167 / 168 (from Cam 1 to Cam 7) | 08090 | 1 to 7 |
| Control protocol | ||
| VISCA, SONY VISCA , Pelco-D/P, UDP, IP (VISCA over IP) |
System
| Operating temperature | Dimensions | Gross weight |
|---|---|---|
| 0°C ~ 40°C (32°F ~ 104°F) | 173 mm (W) x 99 mm (H) x 350 mm (D) | 2.5 kg |
| Power source | Power consumption | Application |
| DC 12V/2A, AC 100–240V | 24 W | Indoor |
| Package content | Part number | |
| User manual / 4-pin RS485 terminal / power adapter | PTCAMCTRL |
