Capture Your Events in True-to-life Video Quality with AI!

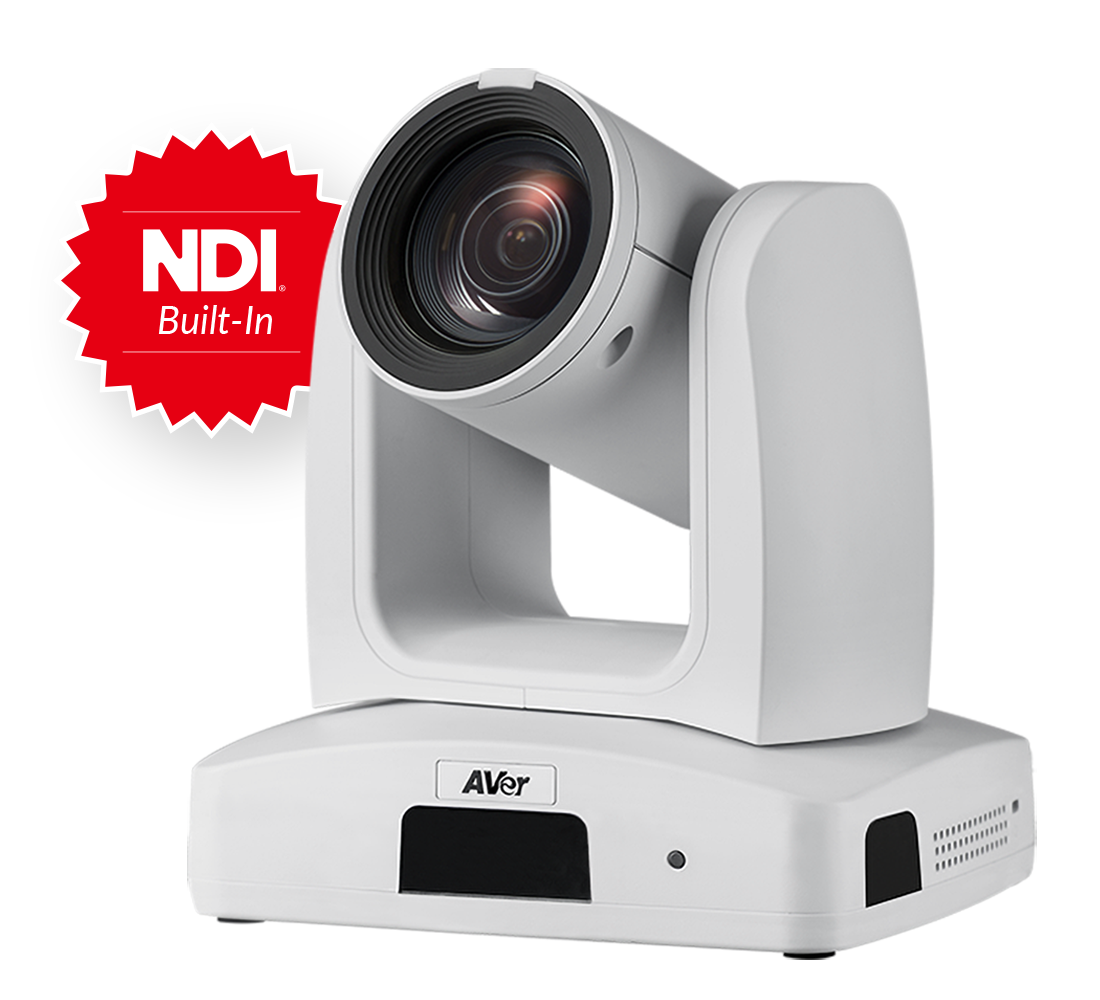

The AVer PTZ231 30X HD AI PTZ Camera is our latest generation of PTZs to offer the best image quality, video streaming support and AI functionality. The camera offers 30X optical zoom, HD resolution, 2MP picture with 60fps and simultaneous output of USB/IP/HDMI/3G-SDI. The PTZ231 includes a number of impressive upgrades from the previous generation PTZ330W, including new improved performance, USB 3.0, a tally light to identify the active camera, and two IR sensors for reliable operation. The camera also includes a ceiling mount and is SRT Ready to optimize video streaming performance across unpredictable networks. Built-in AI functions provide preset content areas or adjust FOV to capture everyone on screen. Includes the 5 year AVerCare warranty for peace of mind.

Multi-Stream Capability

Simultaneous output support from all ports, USB/IP/HDMI/3G-SDI.
4 Multi-Streams

Seamless tracking between your preset zones

AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ231 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Seamless tracking hanging cam
Tracking stage

Highly versatile camera motion control

The PTZ231 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ231 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Prepare for any angle with outstanding preset location functionality

Preset the PTZ231 with up to 256 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Up to 10 Presets
1
2
3

Tally light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Tally Light

Software Compatible software

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest PTZ Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

AVerCare

Specifications

Front
Front
Back
Back

Camera

Image sensor Effective picture elements Output resolution
1/2.8” Full HD Exmor CMOS 2 megapixels 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum illumination S/N ratio Gain
0.5 lux (IRE50, F1.6, 30fps) > 50dB Auto/Manual
TV line Shutter speed Exposure control
1000 (Center/Wide) 1/1s to 1/32,000 sec Auto, Manual, Priority AE(Shutter, IRIS), BLC, WDR
White balance Optical zoom Digital zoom
Auto, Manual, ATW, One Push 30X 12X
Power frequencies Viewing angles Focal length
50Hz, 60Hz DFOV : 69.2° (Wide) to 2.8° (Tele), HFOV : 62.3° (Wide) to 2.5° (Tele), VFOV : 37.3° (Wide) to 1.4° (Tele) f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris) Minimum working distance Pan/Tilt angles
F = 1.8 (Wide) to 4.7 (Tele) 0.1 m (Wide), 1.2 m (Tele) Pan : ±170°, Tilt : +90° / -30°
Pan/Tilt speed (Manual) Preset speed Preset positions
Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec Pan : 200° / sec, Tilt : 200° / sec 10 (IR), 256 (RS-232, RS-422, IP)
Camera control - Interfaces Camera control - Protocol Image processing
RS-232 (DIN8), RS-422 (RJ45), IP VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP) Noise Reduction (2D / 3D), Flip, Mirror
Power frequencies
50Hz, 60Hz

AI functions

Modes
SmartShoot, SmartFrame

Audio

Channel Codecs
2ch stereo AAC-LC

Interface

Video output Audio output Audio input
3G-SDI, HDMI, IP, USB 3G-SDI, HDMI, IP, USB MIC in, Line in

General

Power requirement Power consumption PoE
AC100 - 240V to DC 12V/2A 19W PoE+
Dimensions (W x H x D) New weight Application
180.0 x 192.0 x 145.0 mm 2.0 (±0.1) kg Indoor
Tally light Security Remote control
Yes Kensington Slot Infrared
Operating conditions Storage conditions
Temperature: 0 °C to +40 °C; Humidity: 20% to 80% Temperature: -20 °C to +60 °C; Humidity: 20% to 95%

IP streaming

Resolution Network video compress format Maximum frame rate
1080p60 H.264, H.265, MJPEG 1080p60
Bit-rate control mode Range of bit-rate setting Network interface
VBR/CBR (Selectable) 512 Kbps to 120 Mbps 10 / 100 / 1000 Base-T
Multi-stream capability Network protocol NDI®|HX3 capability
4 - All active streams
IP, USB, HDMI, 3G-SDI
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, LLDP N/A

USB

Connector Video formats Maximum video resolution
USB 3.0 Type-B MJPEG, YUY2 1080p60
USB video class (UVC) USB audio class (UAC)
UVC 1.1 UAC 1.0

WebUI

Live video preview Camera PTZ control Camera/Image adjustment
Yes Pan, Tilt, Zoom, Focus, Preset Control Exposure, White Balance, Picture
Network configuration
DHCP, IP Address Gateway, Subnet Mask, DNS

Software tools

IP Search and Configuration Tool PTZ Management PTZ Control Panel
Support Windows® 7 or later Support Windows® 7 or later Supports iOS & iPadOS® 11 or later
PTZ Link OBS Plugin for PTZ Cameras CaptureShare
Supports Windows® 7 or later, macOS® 10.14 or later Supports Windows® 8 or later, macOS® High Sierra v10.13 or later Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

Camera Accessories
5 Years 1 Year

Package contents

Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4), HDMI Cable (x1)

Optional accessories

AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount

Ordering info

Part number
PAPTZ231W

*Specifications subject to change without notice.

Package contents

  • Camera
    Camera
  • Drilling paper
    Drilling Paper
  • Quick Guide
    Quick Guide
  • Cable Fixing Plate
    Cable Fixing Plate
  • M3 x 6mm Screw
    M3 x 6mm Screw (x3)
  • Power Adapter & Power Cord
    Power Adapter & Power Cord
  • M2 x 4mm Screw
    M2 x 4mm Screw (x3)
  • 1/4
    1/4"-20 L=6.5mm Screw (x2)
  • Remote Control
    Remote Control
  • DIN8 to D-Sub9 Cable
    DIN8 to D-Sub9 Cable
    SKU: PTDIN8PT1
  • RS-232 In/Out Y Cable
    RS-232 In/Out Y Cable
    SKU: PTRSINOUT
  • HDMI Cable
    HDMI Cable
  • Cable Tie (x5)
    Cable Tie (x4)
  • Ceiling Mount Bracket
    Ceiling Mount Bracket (x2)

Optional accessories

  • Wall Mount Bracket
    Wall Mount Bracket (Black)
    SKU: COMSVCMNT Install Guide
  • Wall Mount Bracket
    Wall Mount Bracket (White)
    SKU: PTMLTWM02 Install Guide
  • Camera Controller
    CL01 Camera Controller
    SKU: PTCAMCTRL
