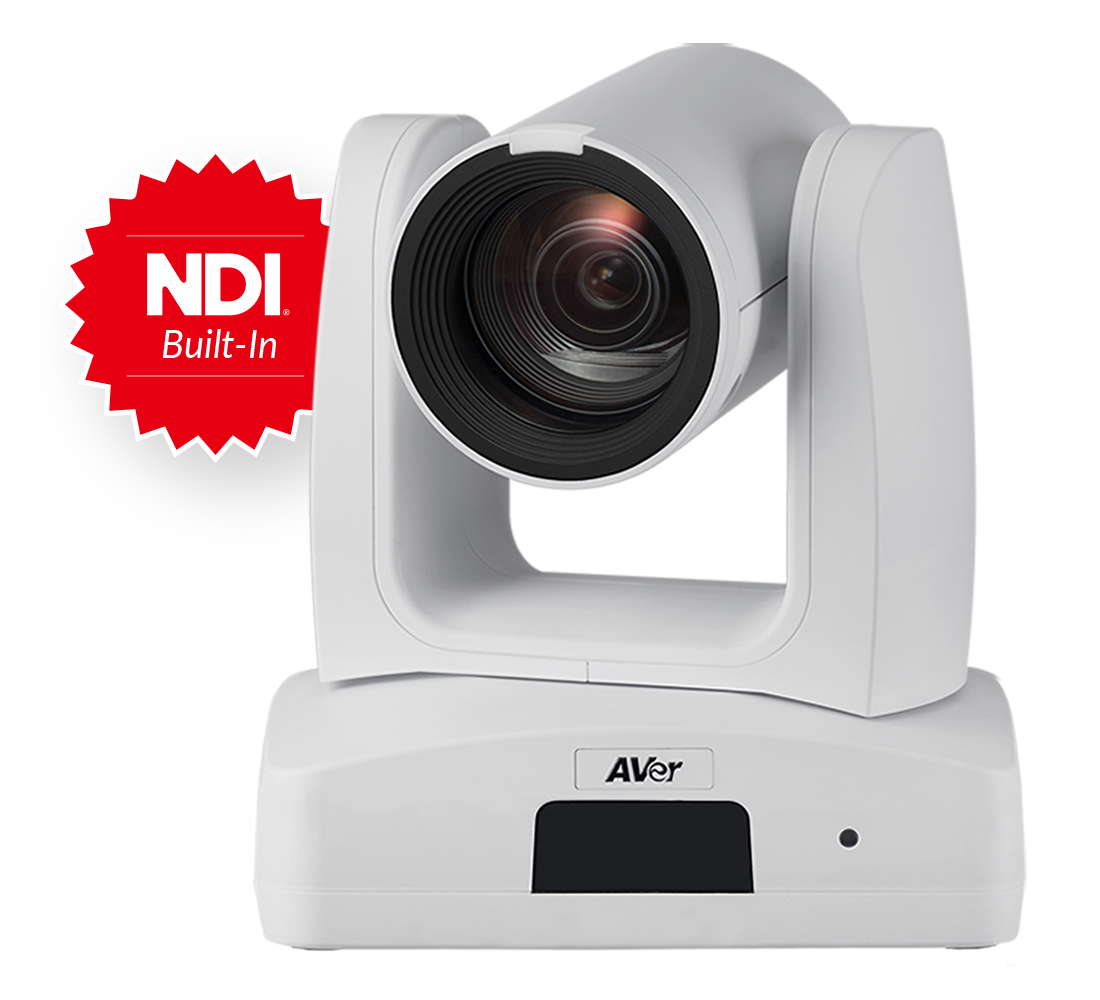

AVer PTZ310UV2 12X 4K AI PTZ Camera

4Kp60

Simultaneous output at 4Kp60 with HDMI/USB/IP.

Harness the Magic of NDI/HX3

Includes the most recent edition of the NDI protocol is NDI^® version 3 (NDI^® |HX3). Features 4Kp60 NDI output with latency less than 100ms.

Seamless tracking between your preset zones

AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ310UV2 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Highly versatile camera motion control

The PTZ310UV2 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310UV2 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Compare

Prepare for any angle with outstanding preset location functionality

Preset the PTZ310UV2 with up to 256 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.

Tally light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Compatible software

Microsoft Team
Barco
Q-Sys
Crestron
Echo360
Extron
KALTURA
Panopto
vMix
ZOOM
Telestream
Newtek

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

Specifications

Front

Back

Camera

Image sensor	Effective picture elements	Output resolution
1/2.8” 4K Exmor CMOS	8 megapixels	4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum illumination	S/N ratio	Gain
0.46 lux (IRE50, F1.6, 30fps)	> 50dB	Auto/Manual
TV line	Shutter speed	Exposure control
1400 (Center/Wide)	1/1s to 1/32,000 sec	Auto, Manual, Priority AE(Shutter, IRIS), BLC, WDR
White balance	Optical zoom	Digital zoom
Auto, Manual, ATW, One Push	12X	1X
Total zoom	Viewing angles	Focal length
12X	DFOV : 79.2° (Wide) to 7.5° (Tele), HFOV : 72.1° (Wide) to 6.3° (Tele), VFOV : 44.0° (Wide) to 3.7° (Tele)	f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)	Minimum working distance	Pan/Tilt angles
F = 1.6 (Wide) to 2.8 (Tele)	0.3 m (Wide), 1.5 m (Tele)	Pan : ±170°, Tilt : +90° / -30°
Pan/Tilt speed (Manual)	Preset speed	Preset positions
Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec	Pan : 200° / sec, Tilt : 200° / sec	10 (IR), 256 (RS-232, RS-422, IP)
Camera control - Interfaces	Camera control - Protocol	Image processing
RS-232 (DIN8), RS-422 (RJ45), IP	VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)	Noise Reduction (2D / 3D), Flip, Mirror
Power frequencies
50Hz, 60Hz

AI functions

Modes
SmartShoot

Audio

Channel	Codecs
2ch stereo	AAC-LC

Interface

Video output	Audio output	Audio input
3G-SDI, HDMI, IP, USB	3G-SDI, HDMI, IP, USB	MIC in, Line in

General

Power requirement	Power consumption	PoE
AC100 - 240V to DC 12V/2A	19W	PoE+
Dimensions (W x H x D)	New weight	Application
180.0 x 192.0 x 145.0 mm	2.0 (±0.1) kg	Indoor
Tally light	Security	Remote control
Yes	Kensington Slot	Infrared
Operating conditions	Storage conditions
Temperature: 0 °C to +40 °C; Humidity: 20% to 80%	Temperature: -20 °C to +60 °C; Humidity: 20% to 95%

IP streaming

Resolution	Network video compress format	Maximum frame rate
4K 60fps	H.264, H.265, MJPEG	4K 60fps
Bit-rate control mode	Range of bit-rate setting	Network interface
VBR/CBR (Selectable)	512 Kbps to 120 Mbps	10 / 100 / 1000 Base-T
Multi-stream capability	Network protocol	NDI^®\|HX3 capability
4: HDMI / RTSP / USB(4Kp60) & 3G-SDI(1080P60)	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, LLDP, VISCA over IP	Yes

USB

Connector	Video formats	Maximum video resolution
USB 3.0 Type-B	MJPEG, YUY2	2160p
USB video class (UVC)	USB audio class (UAC)
UVC 1.1	UAC 1.0

WebUI

Live video preview	Camera PTZ control	Camera/Image adjustment
Yes	Pan, Tilt, Zoom, Focus, Preset Control	Exposure, White Balance, Picture
Network configuration
DHCP, IP Address Gateway, Subnet Mask, DNS

Software tools

IP Search and Configuration Tool	PTZ Management	PTZ Control Panel
Support Windows^® 7 or later	Support Windows^® 7 or later	Supports iOS & iPadOS^® 11 or later
PTZ Link	OBS Plugin for PTZ Cameras	CaptureShare
Supports Windows^® 7 or later, macOS^® 10.14 or later	Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later	Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera	Accessories
5 Years	1 Year

Package contents

Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
