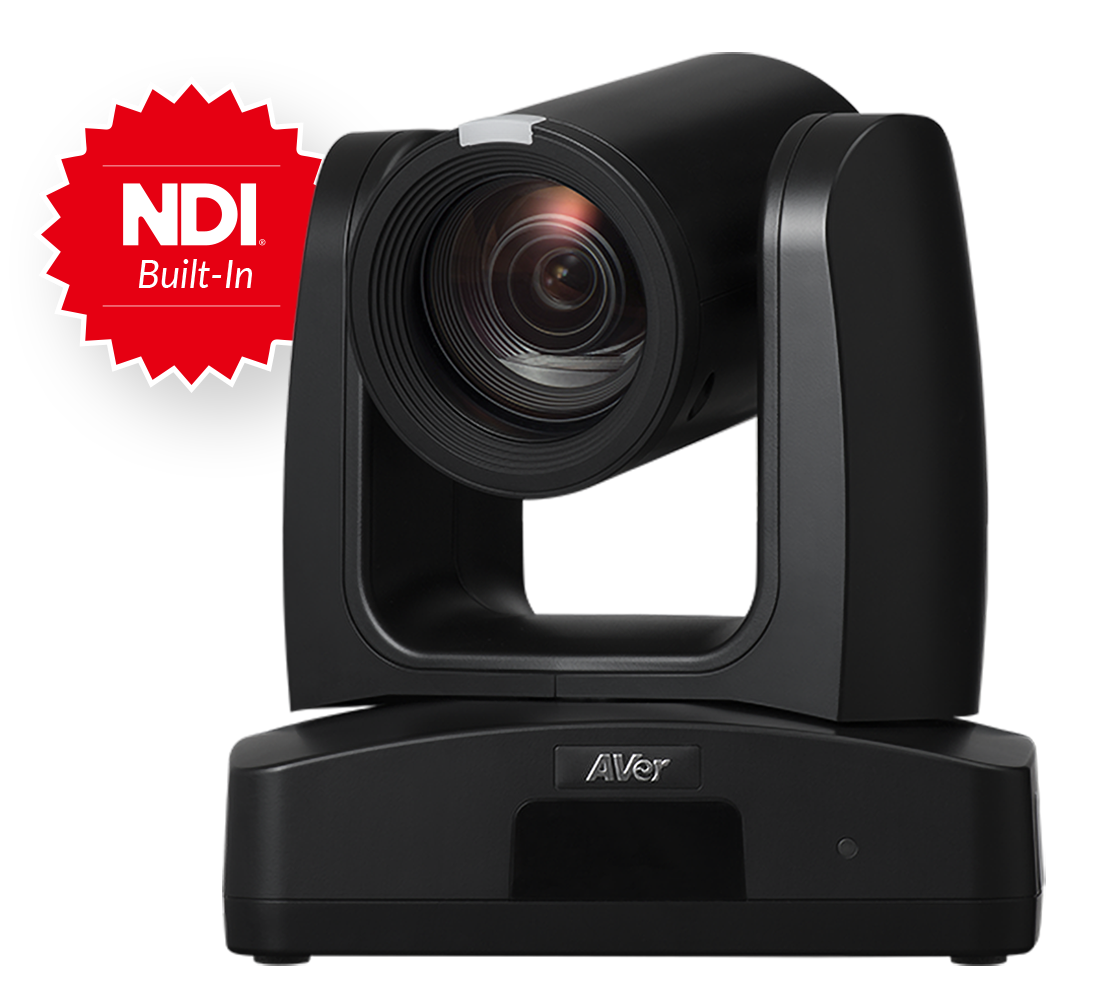

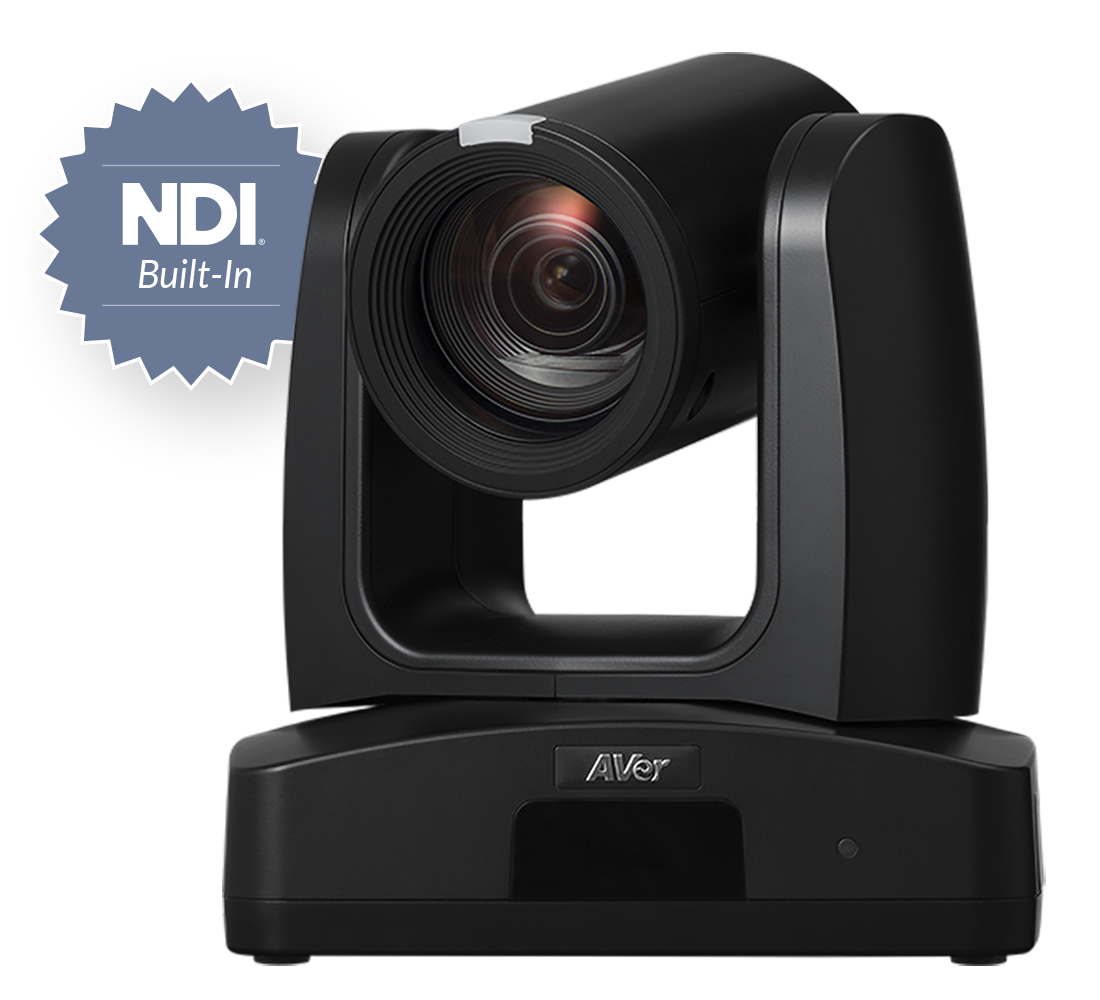

AVer TR323NV2 - 21X 4K NDI PTZ live streaming camera - Professional PTZ Camera

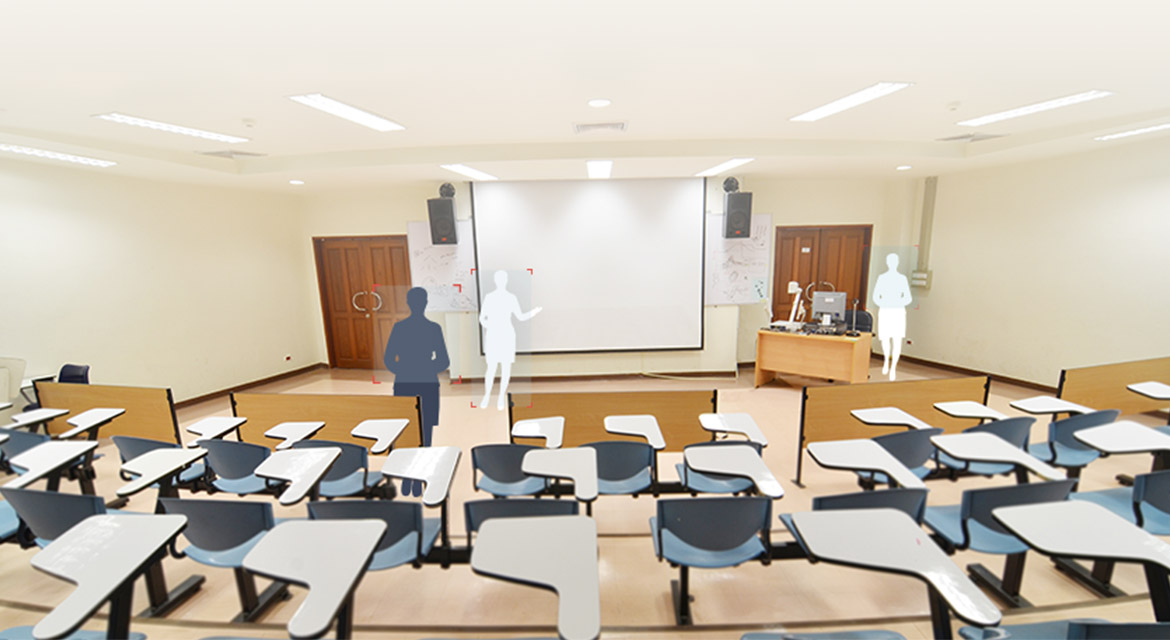

Presenter tracking

Capture every interaction
Either track full body or half body
Simple click to track and manually follow an additional presenter via remote control or Web UI

Zone tracking

Establish preset zones
Create video focused on content
Enhance the capture of content on multiple displays

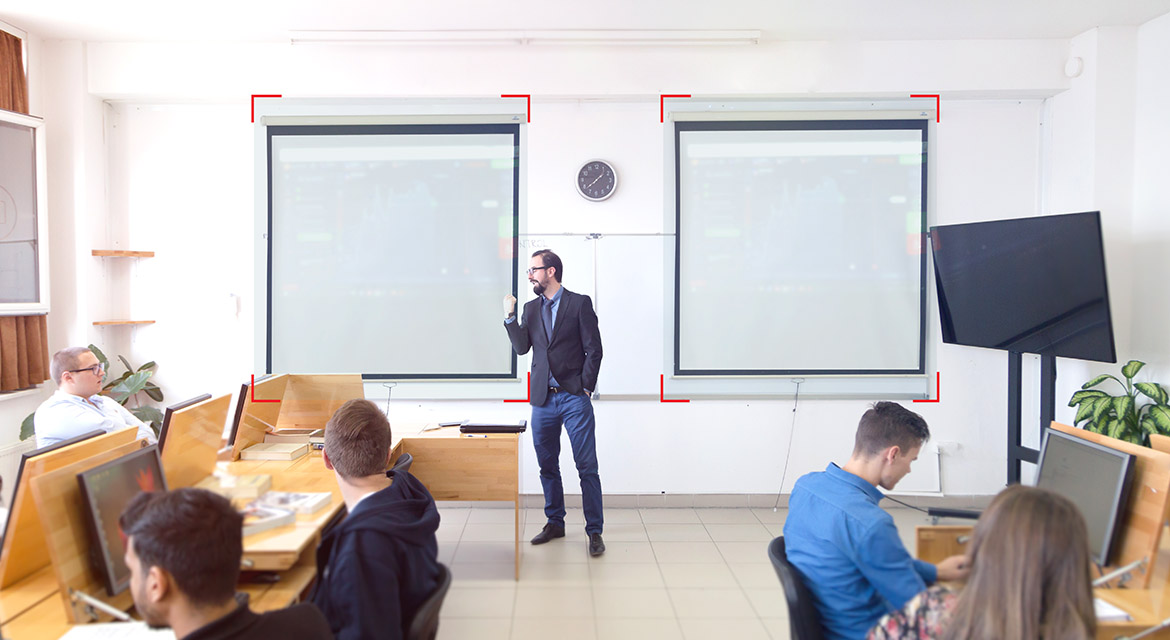

Hybrid mode

Camera auto switch between Presenter vs Zone mode
Combines the best features of Presenter and Zone mode
Flexibility of tracking presenter freely or fixed content

Voice tracking

With the aid of PTZ Link and select microphones, you can easily turn AVer PTZ camera to a voice tracking camera through setting preset points. Accomplish all this without having to hire expensive programmers!

Wide dynamic range

The Wide Dynamic Range (WDR) of the camera uses special algorithms to balance dark or bright lighting for one clear image.

WDR

Without WDR

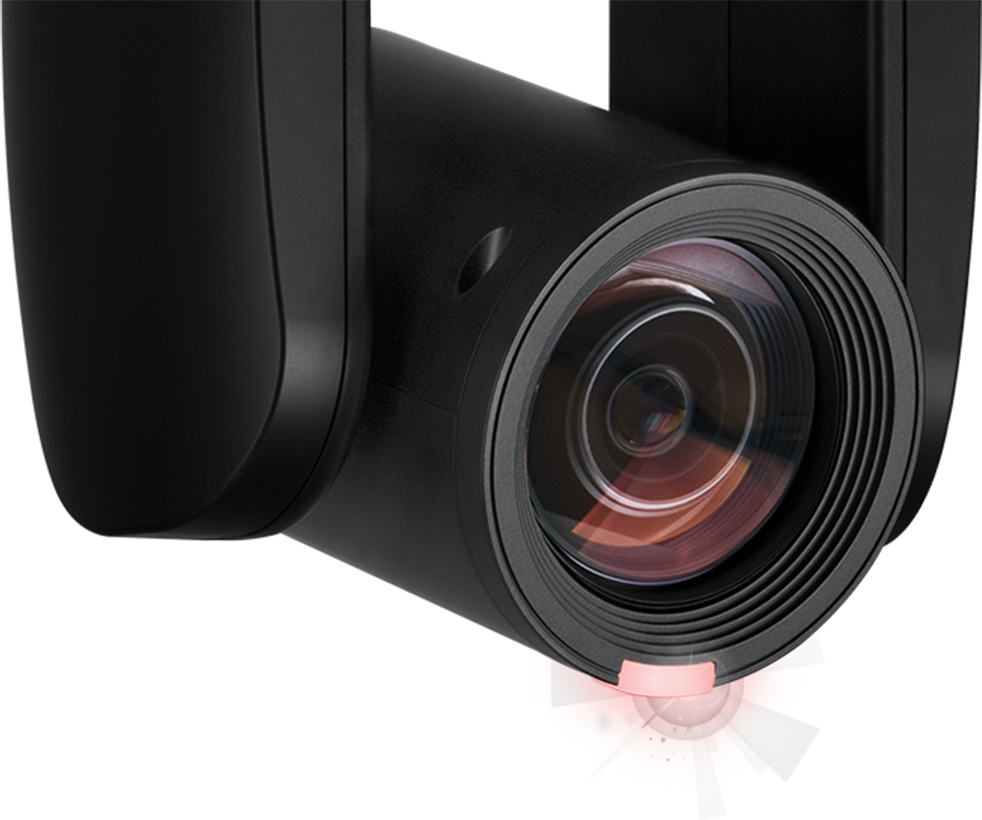

Tally light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Compatible software

Microsoft Team
Barco
Q-Sys
Crestron
Echo360
Extron
KALTURA
Panopto
vMix
ZOOM
Telestream
Newtek

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

Specifications

Front

Back

Camera

Image sensor	Pixel	Output resolution
1/2.8" CMOS	8 megapixels	Resolution: 4k/1080p/720p Frame Rate : 60/59.94/50/30/29.97/25 So far 4K can only support 30/29.97/25
TV line	Focal length	Iris
1400 (center/wide)	f = 5.3 ~ 110mm	F = 1.6 (Wide) ~ 3.8 (Tele)
Optical zoom	Digital zoom	Total zoom
21X	12X	360X
D FOV	H FOV	V FOV
66.4°(wide)~3.3°(Tele)	52.26°(wide)~2.66°(Tele)	41.26°(wide)~2°(Tele)
Minimum illumination	Minimum working distance	Focus
0.5 lux (50 IRE, F1.6, Max. AGC, 1/30, 30fps)	Wide 1.5m, Tele 1.5m	Auto/Manual/One Push
White balance	Gain	Shutter speed
Auto /Manual	Auto /Manual	1/1 s to 1/10,000 s
BLC (Back Light Compensation)	Exposure	Noise reduction
Yes	Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR	2D/3D NR
Frequency	S/N ratio	Image effect
50Hz & 60Hz	≥50dB	Mirror/ Flip Freeze / WDR / BLC
WDR (Wide Dynamic Range)	Included accessories
Yes	Remote control, 12V power adapter, power cable, Din8 to D-Sub9 cable, RS232 in/out cable, screw for mount, ceiling mount, cable fixing plates, quick guide.

Pan tilt parameter

Pan rotation	Tilt rotation	Pan control speed
-170°~+170°	-30°~+90°	0.1 ~ 100°/Sec
Tilt control speed	Preset speed	Preset number
0.1 ~ 100°/Sec	Pan : 200°/Sec, Tilt : 200°/Sec	10 Locations by Remote, 256 vis RS232

IP streaming

Resolution (Max)	Video compression	Audio compression
4K (30PFS)	H.264,H.265.MJPEG	AAC,PCM
Protocol	Bitrate	Bitrate control mode
IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP	512Kbps ~ 32Mbps	VBR/CBR
Multi-stream capability	SRT protocol	NDI Protocol
4K mode: 4K301, 1080P301, 720P101 1080P60 mode: 1080P60 1, 1080P60 * 1, 720P10 * 1	Yes	Upgradable (Click here)

I/O interface

Video output	Audio output	Audio input
3G-SDI, HDMI, IP, USB	3G-SDI, HDMI, IP, USB	MIC in/Line in
Baud rate	Control interface	Control protocol
2400, 4800, 9600, 38400	RS-422/Ethernet	RS232/RS422/IP
Network interface	USB	POE+
10/100/1000 Base - T	3.0	PoE+ (IEEE802.3at)
Power requirements
12V

USB

Connector	Video format	Resolution (Max)
USB3.0 (typeB)	MJPG, YUV	2160P
Video class	Audio class
UVC 1.1	UAC 1.0

Audio

Channel	Codec	Sample rate
2ch (stereo)	AAC-LC(48K)/PCM(8K)	48Khz

System

IR remote control	Tally	Power consumption
Yes	Yes	19W
Operating temperature	Operating humidity	Storage temperature
0°C ~ +40°C	20%~80%	-20°C ~ +60°C
Storage humidity	Dimensions	Net Weight
20% ~ 95%	W180D145H192mm	2.0 kg(+/-0.1) (4.4 lbs)
Kensington Lock	Application
Yes	Indoor
Software tools
AVer PTZ Management CaptureShare PTZ Control Panel for iPad PTZ Link OBS Plug in
