AVer TR615 Broadcast Professional Auto Tracking PTZ Camera

1-Inch Sony Sensor

Powered by a 1-inch Sony Exmor RS^® CMOS sensor, the TR615 captures more light and detail for clean, high-quality 4K video—even in low-light environments. The result is accurate color, excellent clarity, and consistent performance for professional streaming and broadcast applications.

With 1-Inch Sony Sensor

Without 1-Inch Sony Sensor

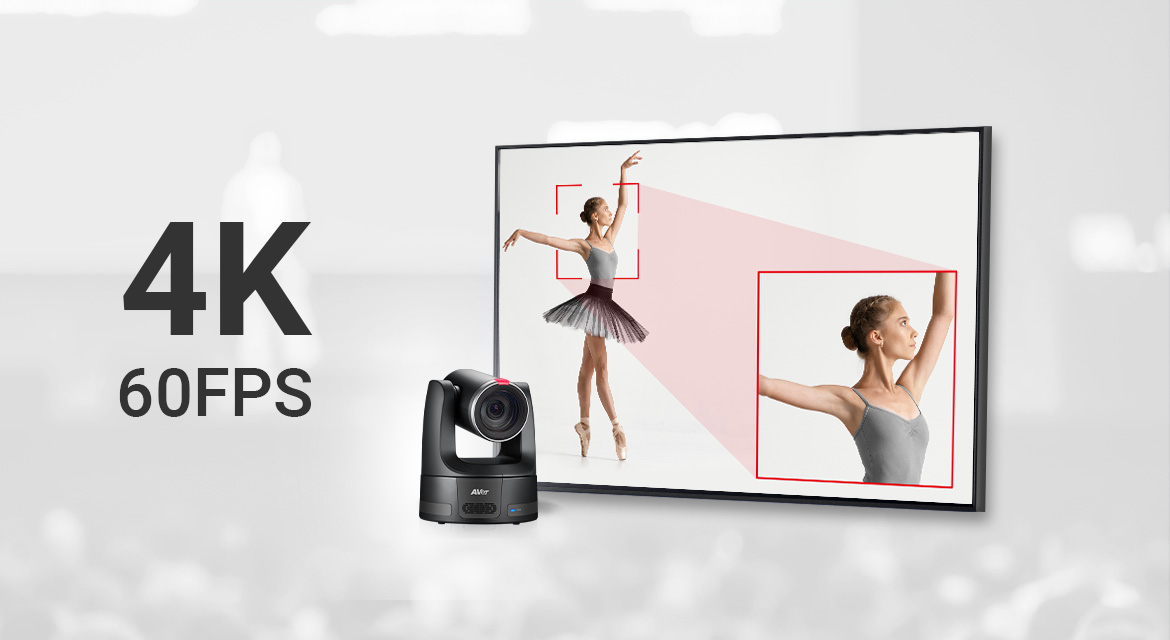

4K 60FPS & 19X Zoom

Delivering 4K resolution at 60fps with 19X optical and 12X digital zoom, the TR615 captures sharp, detailed video even at extended distances. Ideal for professional productions, it ensures smooth, precise imaging for dynamic scenes without sacrificing clarity.

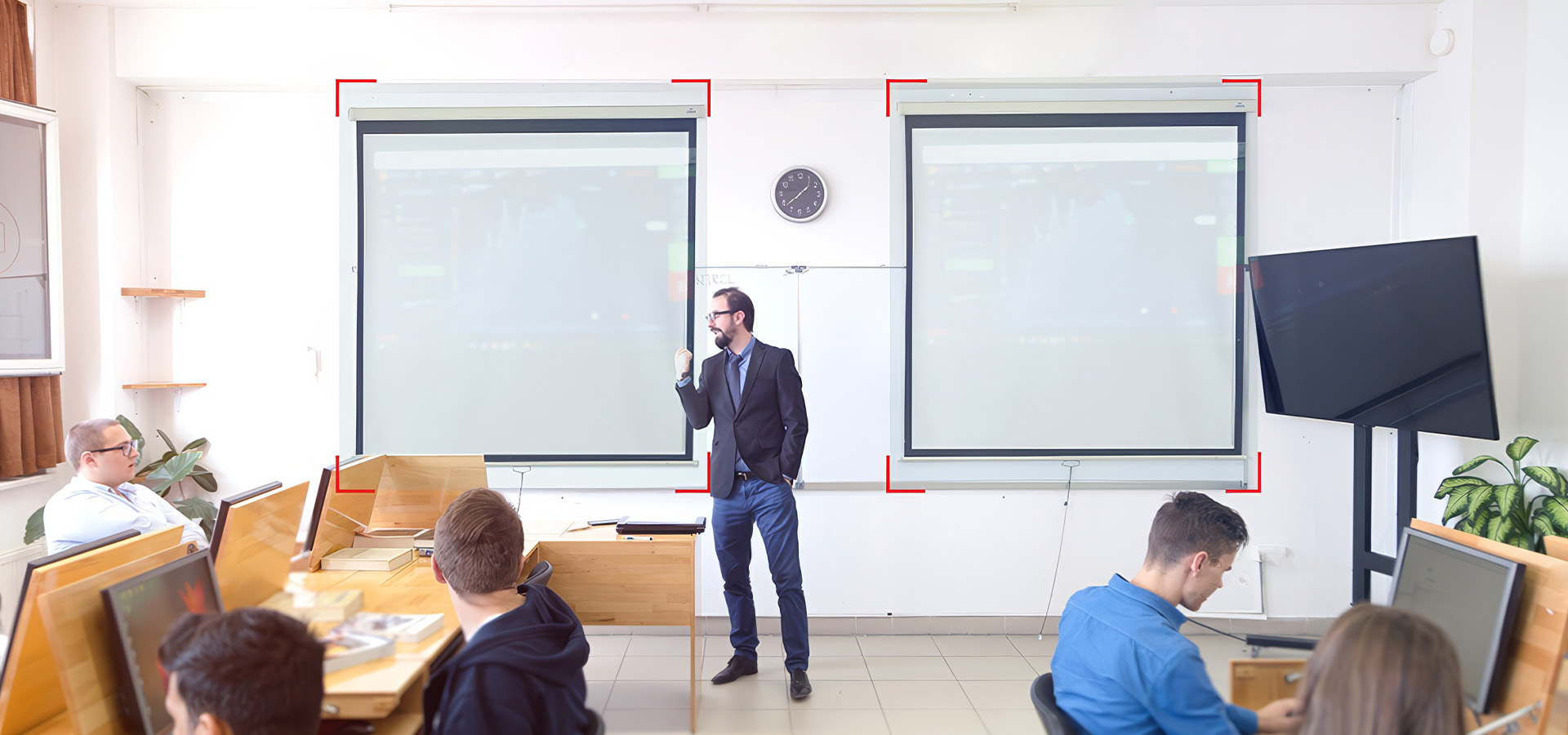

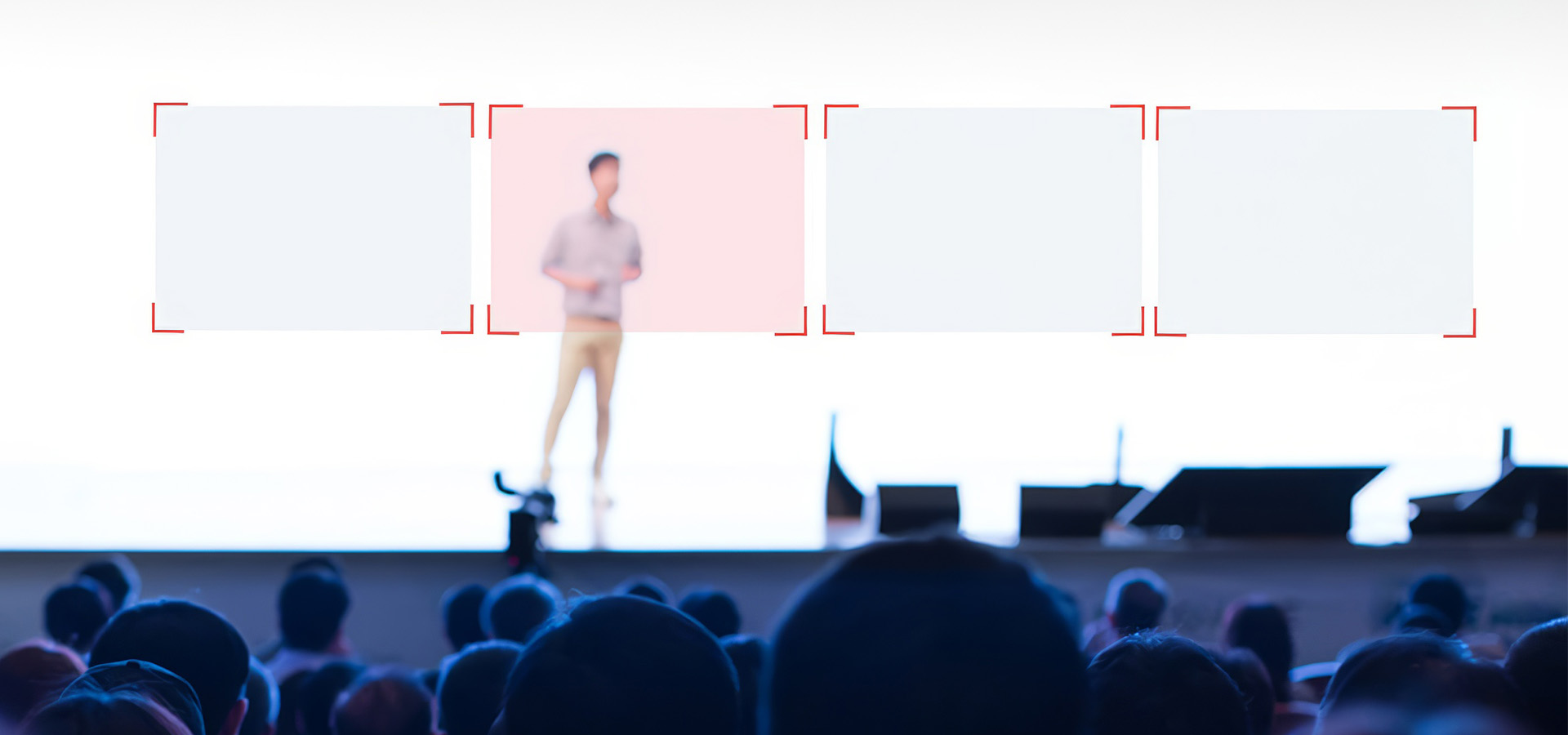

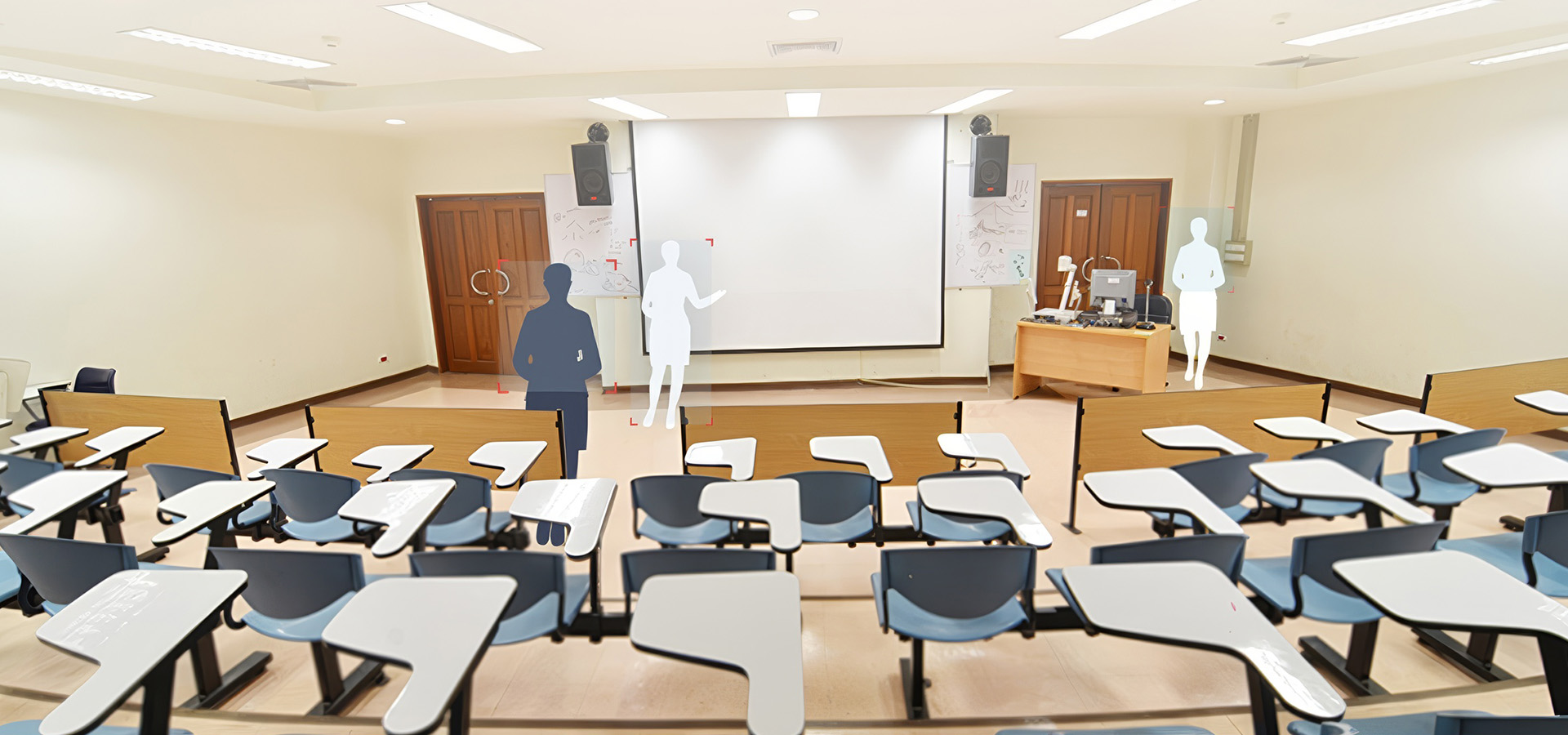

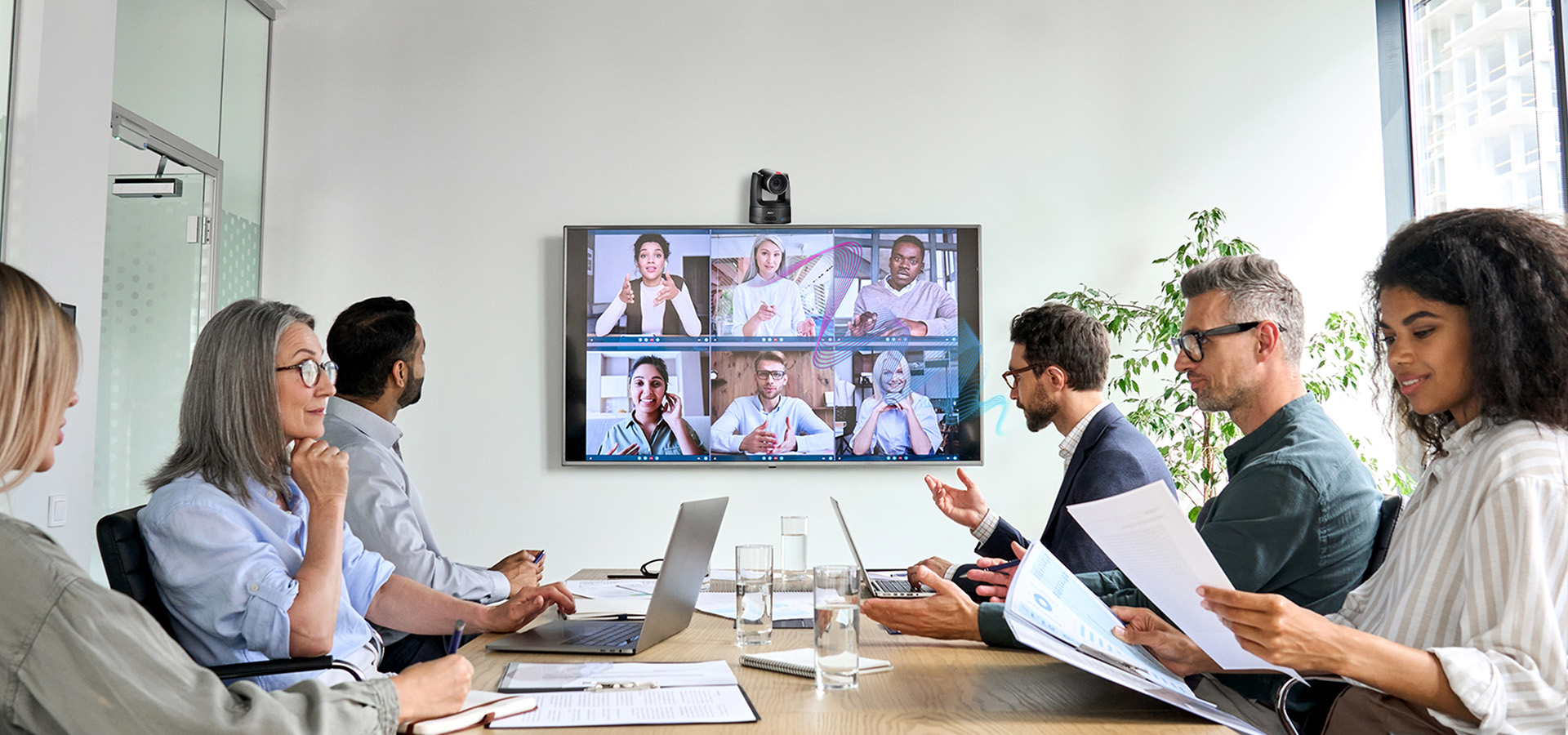

Enhanced AI Auto Tracking

The TR615 leverages advanced AI algorithms and a next-gen SOC with 3x more computing power to deliver smooth, reliable subject tracking. It supports four auto tracking modes—Presenter, Zone, Hybrid, and Voice—offering flexible control for different environments. Stable framing is maintained even with movement or visual obstructions, enabling hands-free operation for live events, lectures, and corporate presentations.

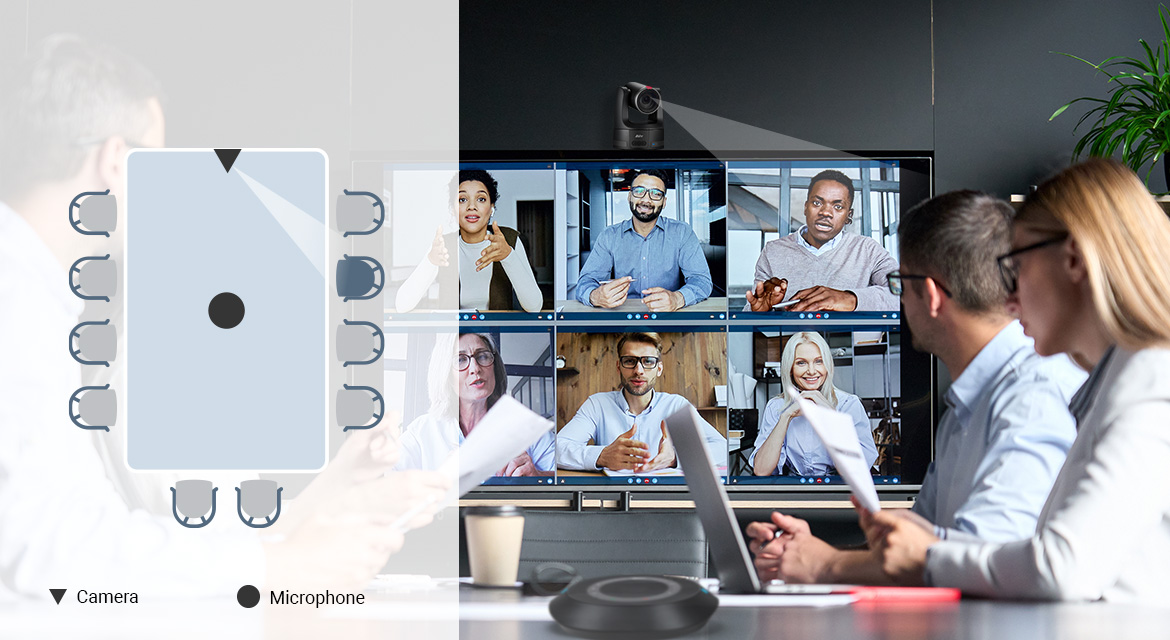

Voice Tracking

Deliver dynamic, voice-activated camera control without the need for programming. Pair AVer PTZ cameras with compatible mics for accurate speaker tracking using preset points. Use PTZ Link software or the MT300N for effortless setup, security, and updates.

AI Autofocus

With Intelligent Human Detection and AI-powered autofocus, the TR615 keeps the presenter in sharp focus, even as they move or as lighting and backgrounds change. An intuitive web interface allows for remote camera control and fine-tuning, making setup and operation efficient for AV technicians and production teams.

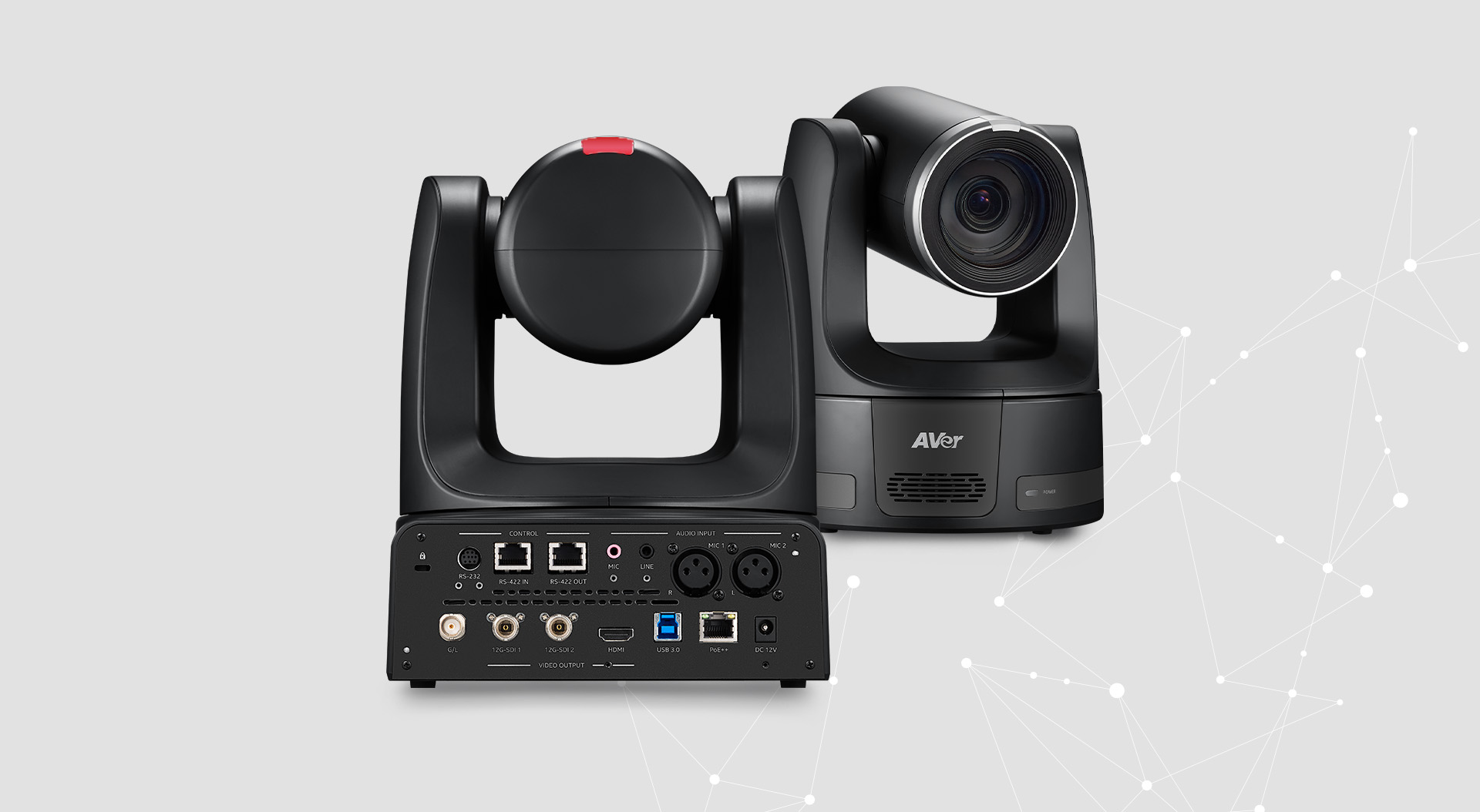

Seamless Integration

The TR615 is built for seamless integration into professional AV and broadcast environments. It supports dual 12G-SDI, NDI^® HX3, XLR audio I/O, FreeD, Genlock, SRT, and RTMP for flexible streaming and remote production. Genlock enables smooth multi-camera switching and coordinated presenter handoff, helping teams maintain a consistent, synchronized production workflow.

Compatible software

Microsoft Team
Barco
Q-Sys
Crestron
Echo360
Extron
KALTURA
Panopto
vMix
ZOOM
Telestream
Newtek

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

Specifications

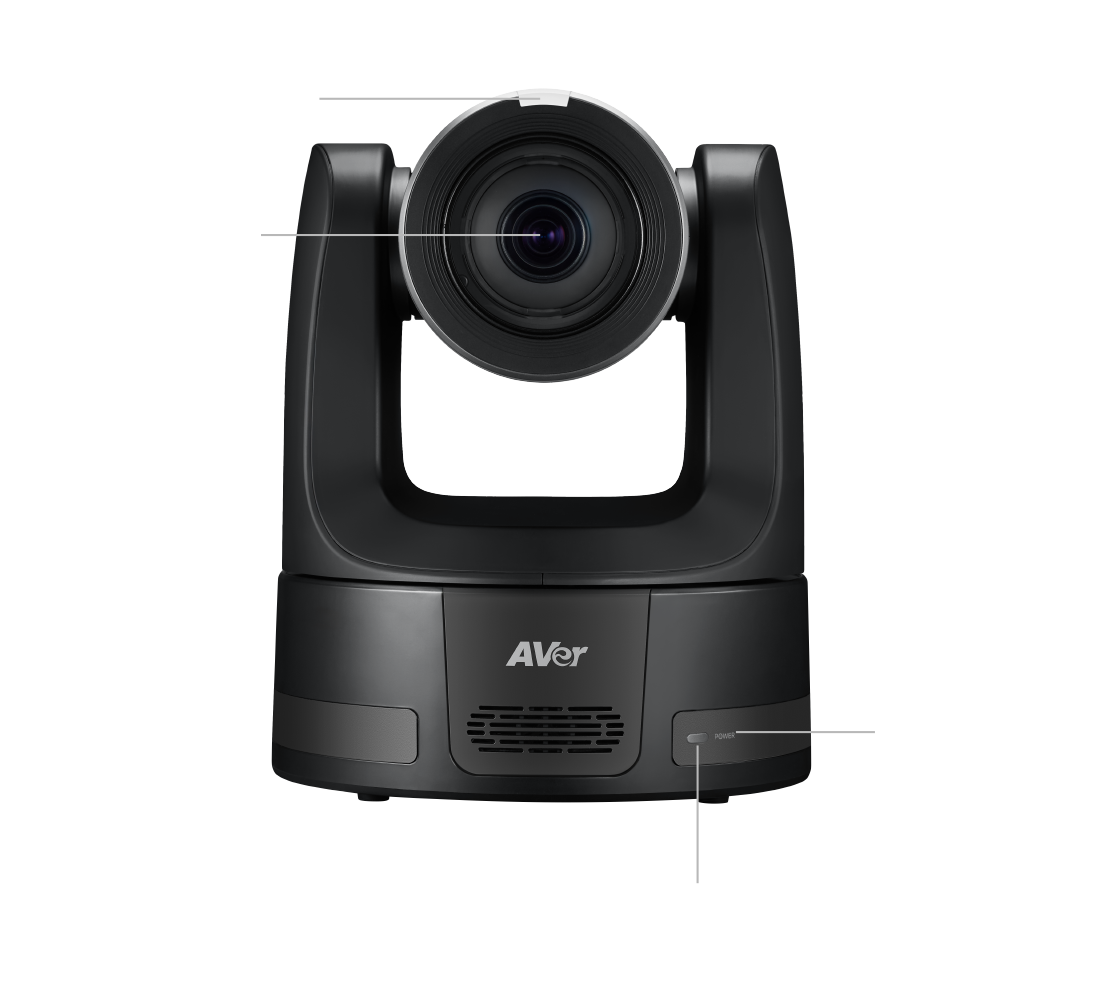

Front

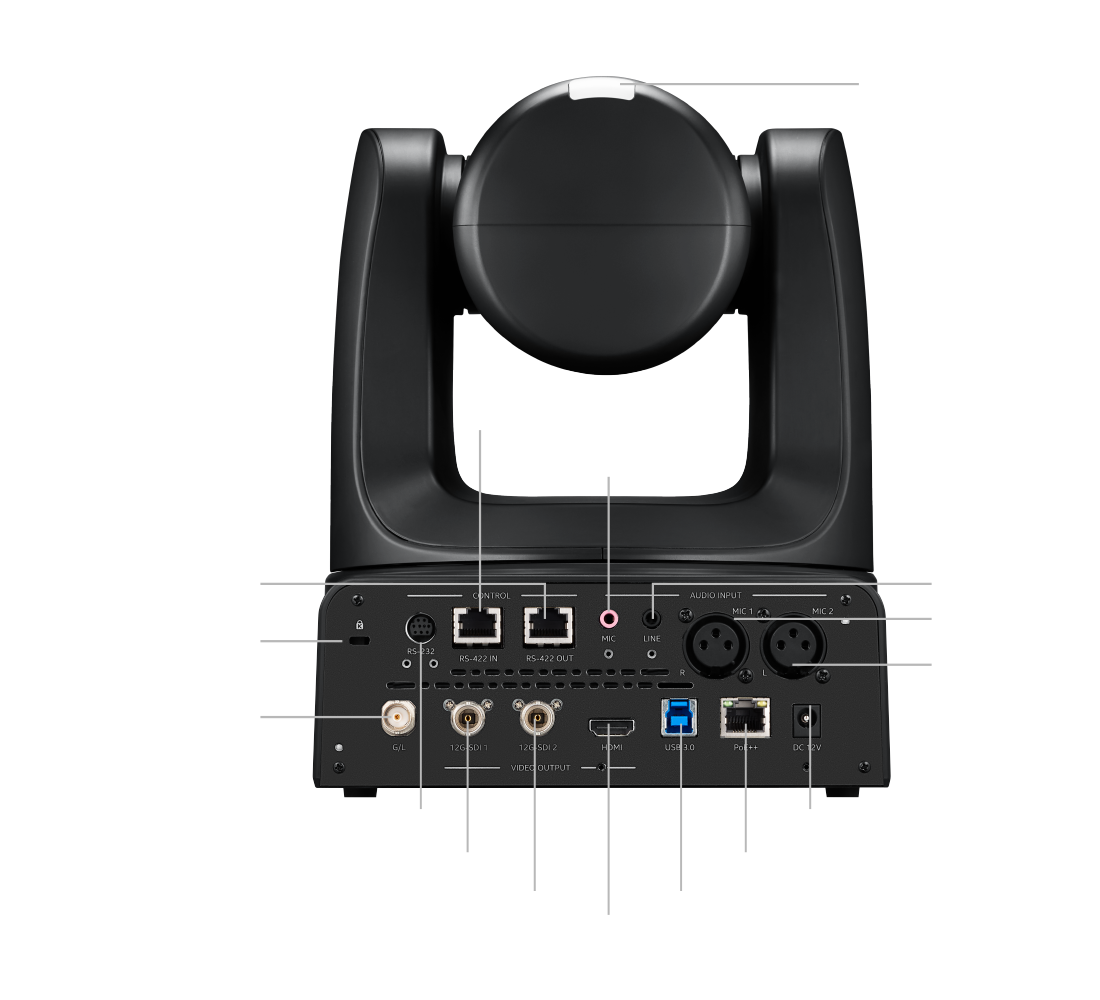

Back

Camera

Image sensor	Total Picture Elements	Effective Picture Elements
1” 4K Sony Exmor RS^® CMOS	20.92 Megapixels	17.25 Megapixels
Output Resolutions	Minimum Illumination	S/N Ratio
4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50	1.4 lux (IRE50, F2.8, 30fps)	≥ 50 dB
Gain	TV Line	Shutter Speed
Auto, Manual	1600 (Center)	1/4 to 1/10,000 sec
Exposure Control	White Balance	Optical Zoom
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR	Auto, Manual, ATW, One Push, Indoor, Outdoor	19X
Digital Zoom	Total Zoom	Viewing Angles
12X	228X	DFOV: 77.8° (Wide) to 4.5° (Tele) HFOV: 69.5° (Wide) to 3.5° (Tele) VFOV: 41.5° (Wide) to 2.3° (Tele)
Focal Length	Aperture (Iris)	Minimum Working Distance
f = 9.79 mm (Wide) to 186.39 mm (Tele)	F = 2.8 (Wide) to 4.5 (Tele)	1.5 m (Wide), 5.0 m (Tele)
Pan / Tilt Angles	Pan / Tilt Speed (Manual)	Preset Speed
Pan: ±170°, Tilt: +90° / -30°	Pan: 0.05° to 100° / sec, Tilt: 0.05° to 100° / sec	Pan: 200° / sec, Tilt: 200° / sec
Preset Positions	Camera Control - Interface	Camera Control - Protocols
10 (IR), 256 (RS-232 / RS-422 / IP)	RS-232 (DIN8), RS-422 (RJ45), IP, USB	VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP), USB, ONVIF;
Image Processing	Power Frequencies
Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC	50 Hz, 60 Hz

AI Technology

Auto Tracking Modes	AI Feature
Presenter Mode, Zone Mode, Hybrid Mode	Multi-Presenter Detection

Privacy Protection Mechanisms

Protection Mode
Sleep Mode

Audio

Channel	Codec	Sample Rates
2ch Stereo	AAC-LC (48 K)	48 KHz

Interface

Video Outputs	Audio Outputs	Audio Inputs
12G-SDI x 2, HDMI, IP, USB	12G-SDI x 2, HDMI, IP, USB	Mic in, Line in, XLR
Genlock Input
BNC

General

Power Requirement	Power Consumption	PoE
AC 100 - 240V to DC 12V/5A	32.4W	PoE++
Dimensions (W x H x D)	Net Weight	Application
202.5 x 304.5 x 231.5 mm	4.3 (±0.1) kg	Indoor
Tally Lamp	Security	Remote Control
Yes	Kensington Slot	Infrared
Operating Conditions	Storage Conditions	Sustainability
Temperature: 0 °C to +40 °C ; Humidity: 20% to 80%	Temperature: -20 °C to +60 °C ; Humidity: 20% to 95%	Plastic Material: ABS Sustainability Method: PCR-PC

IP Streaming

Resolution	Network Video Compress Formats	Network Audio Compress Formats
4K 60fps	H.264, H.265, MJPEG	AAC-LC (48 K)
Maximum Frame Rate	Bit-Rate Control Modes	Range of Bit-Rate Setting
4K 60fps	VBR, CBR (selectable)	512 Kbps to 64 Mbps
Network Interface	Multi-Stream Capability	Network Protocols
10 / 100 / 1000 Base-T	4K 60fp Standard Mode, Zoom Mode, NDI® Mode: 5 (RTSP, HDMI, USB, 12G-SDI, & NDI®) Teams Mode: 1 (USB)	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP, ONVIF
NDI^®HX3	NDI^®Embedded Bridge	Dante AV-H
Yes (Pre-installed)	Yes	Yes (Available in 2025Q3)
Camera Tracking Data Output
Supports Free-D Type D0 / D1

USB

Connector	Video Format	Audio Format
USB 3.2 Gen 1	USB 3.2 Gen 1	PCM
Maximum Video Resolution	USB Video Class (UVC)	USB Audio Class (UAC)
4K	UVC 1.1	UAC 1.0

Web UI

Live Video Preview	Camera PTZ Control	Camera/Image Adjustment
Yes	Pan, Tilt, Zoom, Focus, Preset Control	Exposure, White Balance, Picture
Network Configuration	Supported Web Browsers
DHCP, IP Address, Gateway, Subnet Mask, DNS	Chrome, Edge, Safari

Software Tools

Device Utility	Enterprise Management	Room Management
Supports Windows^®7 or later, macOS^® 10.14 or later	Supports Windows^® 10 or later	Supports Windows^® 7 or later, macOS^® 11.6 or later
Cloud Management	PTZ Control Pane	PTZ Link
Supports Windows® 7 or later, macOS^® 10.14 or later	Supports iOS & iPadOS^® 11 or later	Supports Windows^® 7 or later, macOS^® 10.14 or later
OBS Plugin for PTZ Cameras	CaptureShare
Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later	Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

Camera	Accessories	Package Contents
5 Years	1 Year	Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x7), M2 x 4 mm Screws (x6), M3 x 6 mm Screws (x3), 1/4""-20L 6.5mm Screws (x2), Cable Fixing Plate (x3), Ceiling Mount Brackets (x2), Drilling Paper, Quick Start Guide
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
