AVer MT300N - NDI® Matrix Tracking Box

Integrated voice tracking

Pre-installed PTZ Link software works with AVer Pro AV cameras and 3rd-party microphone systems including Sennheiser, Shure, Yamaha, Nureva, ClearOne, and Audio-Technica.
Easily turn AVer’s PTZ Camera into a voice tracking camera through setting preset points.
No programming required!

Multi-camera switching

Premium Version of PTZ Link license supports up to 25 groups of AVer cameras and microphones to accomplish automatic video switching.
Access direct connectivity to AVer cameras via USB.
Rich video conferencing platform compatibility allows you to switch cameras between Microsoft Teams, Zoom Room or Google Meet systems.
BYOD (Bring your own device) or integrate it with your existing devices, while leveraging its multimedia capabilities.

Multi-camera switching

Premium Version of PTZ Link license supports up to five groups of AVer cameras and microphones to accomplish automatic video switching.
Access direct connectivity to AVer cameras via USB.
Rich video conferencing platform compatibility allows you to switch cameras between Microsoft Teams, Zoom Room or Google Meet systems.
BYOD (Bring your own device) or integrate it with your existing devices, while leveraging its multimedia capabilities.

Web UI with Remote Management

Our simple web-based interface enables convenient remote access and management of cameras. Additionally, users can effortlessly create personalized profiles including display layouts to easily access their preferred settings.

Supports NDI/HX2

Take advantage of the power of NDI|HX2 format with built-in encode support for your connected devices.

Compact. Easily mountable

The small form factor allows you to neatly tuck away the MT300N under a desk with the rack mount brackets (included) or on a server rack with the optional server rack mount (sold separately).

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” Pro AV cameras and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

Specifications

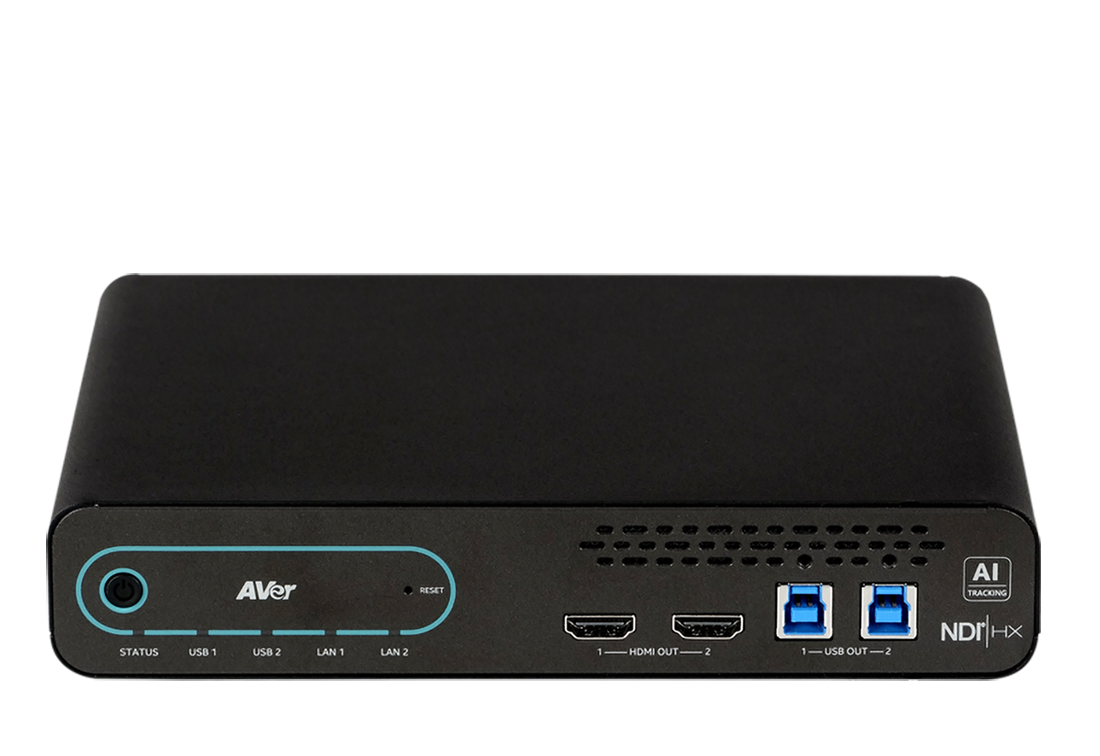

Front

Back

Tracking Box

Platform	Input Resolutions	Output Resolutions
Embedded Linux on Quad Core ARM^®	1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50	HDMI Outputs 2160p/60, 2160p/59.94, 2160p/50, 2160p/30, 2160p/29.97, 2160p/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 480p/60
Output Resolutions	Output Resolutions	PTZ Link Premium
USB Outputs YUY2 1080p/30, 1080p/15 MJPEG 2180p/30, 2180p/15, 1080p/60, 1080p/30	Stream Output Resolution 3840x2160, 1920x1080, 1280x720, 960x540, 640x480, 640x360 Framerate 1, 5, 15, 20, 30, 60	License included
Camera Control - Protocols	Maximum Input Signals	Maximum Output Signals
VISCA (RS-422 / IP), PELCO-D & PELCO-P (RS-422), CGI (IP)	7 4 - Combination of IP + USB, 3 - HDMI (Maximum 4 active inputs at any time)	1 (All outputs are mirrored)

Interface

Video Output	Video Input	Camera Control - Interfaces
All outputs are mirrored HDMI (2), IP, USB 3.0 Type-A (2), NDI HX2	HDMI (3), IP, NDI HX3, USB 2.0 Type-B (3)	RS-422 (RJ45), IP
Ethernet	Buttons
RJ45 (2) PoE+ - Port 1 only	Power, Reset (recessed)

IP Streaming

Resolution	Network Video Compress Formats	Maximum Frame Rate
Up to 2160p/60 (Maximum decode resolution up to 1080p/60)	H.264, H.265, MJPEG	60fps
Bit-Rate Control Modes	Range of Bit-Rate Setting	Network Interface
VBR, CBR (selectable)	512 Kbps to 32 Mbps, and Auto	10 / 100 / 1000 Base-T
Multi-Stream Capability	Network Protocols	NDI^®HX2
Input Maximum upto 4 Upto 1080p/60: IP, NDI-HX3 Output Unlimited connections Upto 2160p/60: IP, NDI-HX2 720p/10: MT300N Web-Interface	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP	Encoding
NDI^®HX2
Decoding

USB

Input Connectors	Output Connectors	Output Video Formats
USB 2.0 (Port 1/2 - UVC, Port 3 - UVC/UAC)	USB 3.0 (2)Port	MJPEG, YUY2
Maximum Output Video Resolution	USB Video Class (UVC)	USB Audio Class (UAC)
2160p/30 - MJPEG 1080p/30 - YUY2	UVC 1.1	UAC 1.0

LED Indicators

Power/Status LED
Orange (Solid)	Green (Solid)	Green (Flashing)
Device powered but in standby	Device powered and operating normally	Device is upgrading firmware
USB 1 / USB 2
Green (Solid)	Green (Flashing)
Host is connected and device is ready to stream UVC/UAC video	Device is streaming UVC/UAC video
LAN 1 / LAN 2
Green (Solid)
Device is connected to network

General

Power Requirement	Power Consumption	PoE
DC 12V/1.5A	18W	PoE+
Dimensions (W x D x H)	Net Weight	Security
15.0 x 21.0 x 4.1 cm	0.9 (±0.1) kg	Kensington Slot
Remote Control	Operating Conditions	Storage Conditions
Infrared	Temperature : 0 °C to +50 °C ; Humidity : 20% to 80%	Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
Installation	Safety Certifications
Rack mountable, Under the table, Inside the podium, Behind the display	CE, FCC, BSMI, NCC, IC, VCCI, UKCA, EAC

WebUI

Input Connectors	Output Connectors	Output Video Formats
USB 2.0 (3) (Port 1/2 - UVC, Port 3 - UVC/UAC)	USB 3.0 (2) Automatic USB port selection to the last connected host. Port 1 has higher priority if both ports are connected to host. (For MTR/Zoom Room and BYOM switching applications.)	MJPEG, YUY2
Maximum Output Video Resolution	USB Audio Class (UVC)	USB Video Class (UAC)
2160p/30 - MJPEG 1080p/30 - YUY2	UVC 1.1	UAC 1.0

Software Tools

IP Search and Configuration Tool	PTZ Management	PTZ Control Panel
Support Windows® 7 or later	Support Windows® 7 or later	Supports iOS & iPadOS® 11 or later
PTZ Link	CaptureShare
Built-in with Premium License Activated	Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

Device	Accessories
5 Years	1 Year

Package Contents

MT300N Device, Power Adapter, Power Cable, Cable Fixing Plate (x2), Cable Tie (x13), 3.0 x 5 Truss Head Screw (x4), M3 x 10 mm Screw (x4), Rack Mount Bracket (x2), USB 3.0 Cable (x2), RS-422 Cable, Quick Start Guide

Optional Accessories

Server Rack Mount, 3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2)

Ordering info

Part number
PATMT300N

*Specifications subject to change without notice.

Supported Devices

BIAMP	Audio Technica	Shure
TesiraFORTÉ X Parlé TCM-X/lXA/XEX	ATND1061DAN/LK ATUC-50 DU/CU	MXA920, MXA910, MXA710, MXA310, MXCW, P300
Sennheiser	Nureva	Yamaha
TCC2, TCC M	HDL300, Dual HDL300, HDL410, HDL310	Adecia RM-CG, RM-TT, RM-CR
ClearOne
CONVERGE^® Pro 2 (DSP)+ BMA360 (Mic)

Camera COMPATIBILILTY	TR530+ V0.0.1000.47 or later PTZ310(N) / PTZ330(N) V0.0.0000.56 or later TR333V2 / TR323NV2 / TR313V2 / TR311HWV2 V0.1.0000.23 or later PTZ310U(N)V2 / PTZ330U(N)V2 / PTZ211 / PTZ231 V0.0.0000.24 or later TR211 / TR315(N) / TR335(N) /V0.0.0000.24 or later TR535 V0.0.0000.18 or later CAM550 V0.0.8004.20 or later CAM570 V0.0.8102.48 or later CAM520 Pro3 V0.0.9602.18 or later
