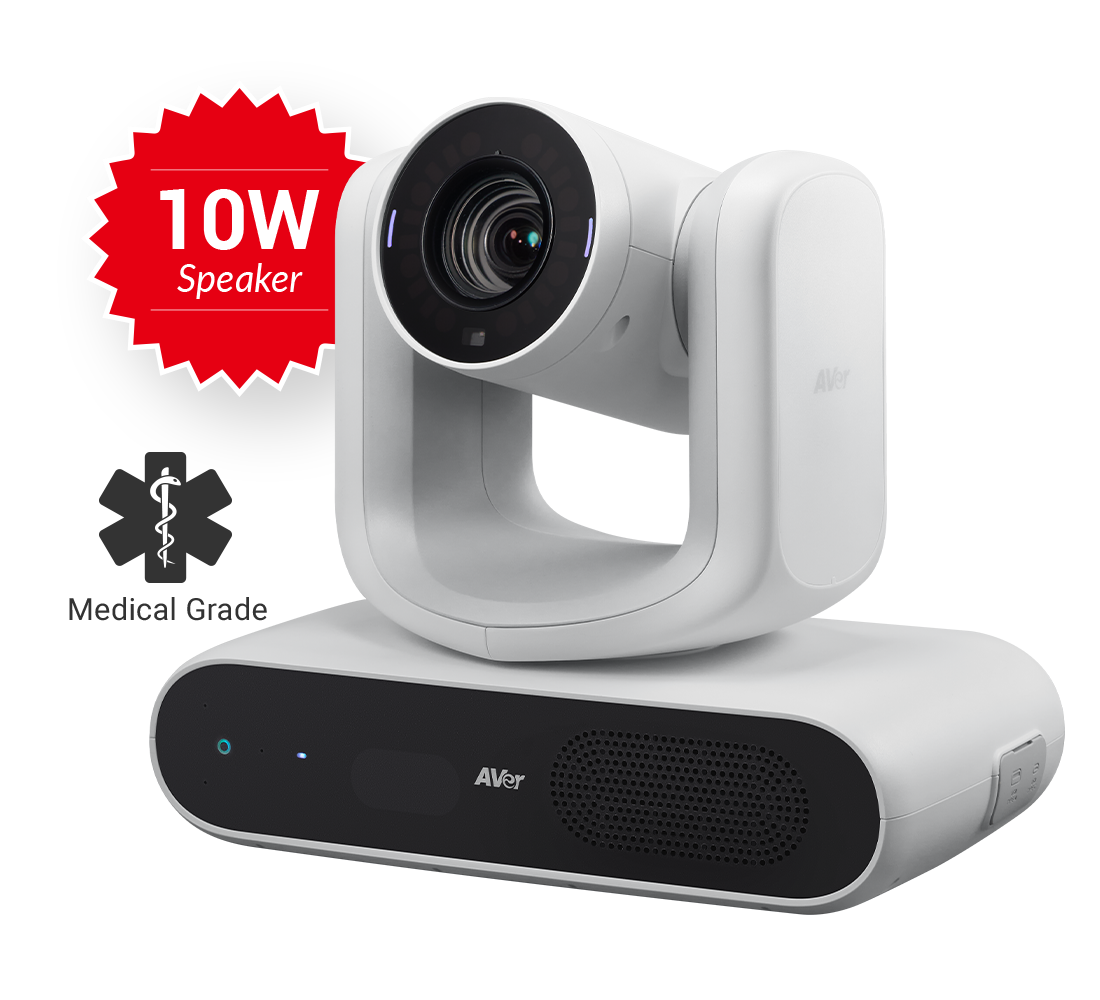

AVer MD720UIS - All-in-One 20X 4K AI Medical Grade PTZ Camera with Embedded Android

Smart Healthcare Powered by Edge-AI

Equipped with a powerful chipset for edge computing, the MD720UIS not only features computer vision AI functions—such as AI Fall / Bed Egress Detection, and AI Face / Eye Tracking to assist medical professionals—but also supports AI features from a wide range of applications. This allows the device to run various AI-powered apps for diagnostics, patient monitoring, and more, seamlessly supporting diverse healthcare needs.

The MD720UIS is equipped with an Edge-AI computer vision model that can automatically detect abnormal events in the ward. For instance, when a patient falls / leaves the bed within the camera's field of view, it triggers an alert to notify nursing station personnel.

The MD720UIS is equipped with state-of-the-art AI algorithms that automatically detect the patient's body contour, allowing the camera to quickly zoom in on specific areas of interest, such as the face and eyes. This makes the system easy to use, facilitating efficient examinations in remote settings.

Supports AI features from a wide range of applications

This allows the device to run various AI-powered apps for diagnostics, patient monitoring, and more, seamlessly supporting diverse healthcare needs.

Expands Your Healthcare Applications for Enhanced Care

Embedded with an Android operating system, the MD720UIS can install and run multiple apps using PiP (Picture-in-Picture) or Split Screen modes, enabling multitasking and flexibility in healthcare environments. Additionally, along with its embedded two-way audio, it further expands its functionality — from supporting telemedicine to enabling telerehabilitation, and beyond.

Expands Your Healthcare Applications for Enhanced Care

Eliminate touchpoints with gesture control

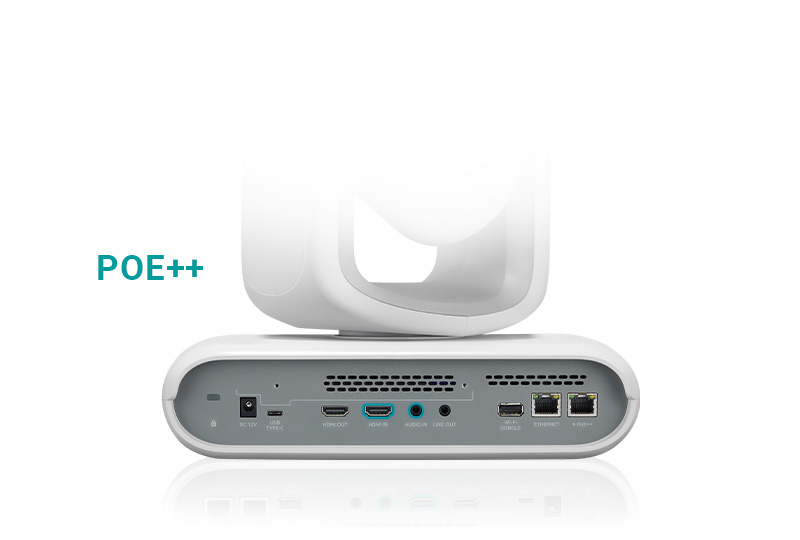

Versatile Connectivity for Easy Integration and Installation

The MD720UIS’s versatile connectivity enables seamless integration with various peripheral medical devices, providing access to images and data on a TV or monitor. Additionally, the PoE++ port allows both data and power to be delivered over a single Ethernet cable, simplifying installation and reducing clutter.

Versatile Connectivity for Easy Integration and Installation

Continuous Care with AI-Powered Detection

Patient safety is of the utmost importance, and the MD720UIS is designed to ensure round-the-clock safety and care. With its IR Night Vision feature and AI Fall/Bed Egress Detection function, the device provides 24/7 monitoring and ensures immediate alerts to caregivers when adverse events occur, allowing for rapid response and enhanced patient safety.

IR Night Vision Function
AI Fall / Bed Egress Detection Function

Your Privacy Matters

In any healthcare setting, it is crucial to respect patients' trust and privacy. The MD720UIS offers two key privacy features: Local Privacy Mode, which turns off the transmission of both audio and video, ensuring no information leaves the room, and the Mosaic function, which automatically detects and applies a mosaic effect to bodies or faces within the field of view.

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour** turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

** Product will be shipped within 24 hours, after the RMA has been confirmed.

Specifications

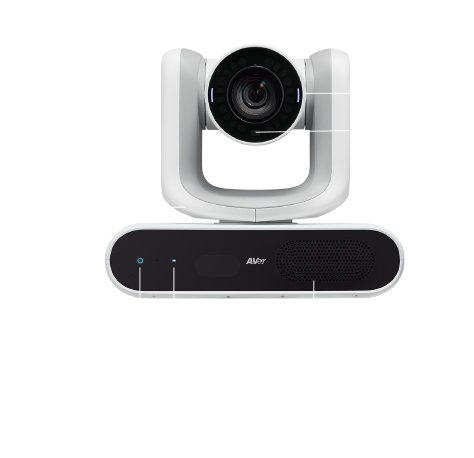

Front

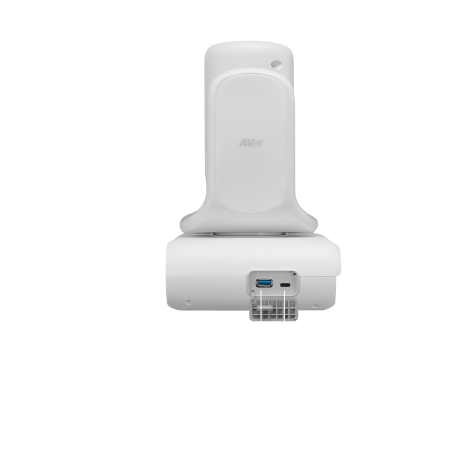

Side

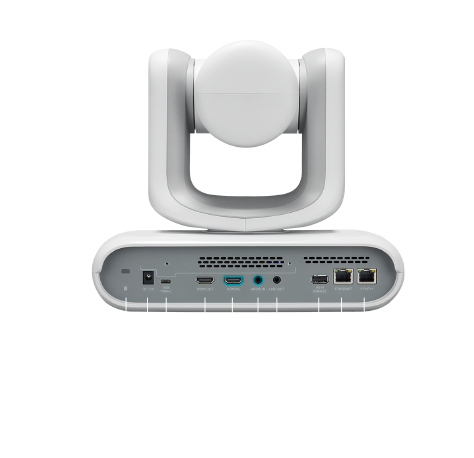

Back

Camera

Image sensor	Effective Picture Elements	Output resolution
1/2.8” Exmor CMOS	8 megapixels	Resolutions: 4K / 1080p / 720p Frame Rates: 60 / 30 / 25
Minimum Illumination	S/N Ratio	Gain
0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)	≥ 50 dB	Auto, Manual
Shutter Speed	Exposure Control	White Balance
1/1 to 1/10,000 sec	Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR	Auto, Manual
Optical Zoom	Digital Zoom	Viewing Angles
20X	1X	DFOV: 69.2° (Wide) to 4.1° (Tele) HFOV: 62.3° (Wide) to 3.6° (Tele) VFOV: 37.3° (Wide) to 2.1° (Tele)
Focal Length	Aperture (Iris)	Minimum Working Distance
f = 4.5 mm (Wide) to 90 mm (Tele)	F = 1.8 (Wide) to 4.7 (Tele)	0.1 m (Wide), 1.2 m (Tele)
Pan/Tilt Angles	Pan/Tilt Speed (Manual)	Preset Speed
Pan: ±170°, Tilt: +90° / -90°	Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec	Pan: 200° / sec, Tilt: 200° / sec
Preset Postition	Camera Control - Interfaces	Camera Control - Protocols
256 (IP / USB)	RS-232 / RS-422 / Ethernet / USB	VISCA (IP), CGI (IP), UVC
Image Processing	Power Frequency
Mirror / Flip / Freeze / WDR / BLC	50 Hz, 60 Hz

AI Function

Mode
Face / Eyes Tracking, Fall / Bed Egress Detection

Privacy

Protection Mode
Local Privacy Mode, Mosaic Function

Audio

Embedded Speaker	Microphone	AI Noise Reduction
Yes, 10 Watts	Yes, Array Microphone	Yes

Interface

Video Outputs	Audio Outputs	Audio Inputs
HDMI, IP, USB-C (Rear)	HDMI, IP, USB-C, Line-out (Rear)	N/A

Web UI

USB 3.0 Preview	Camera PTZ Control	Camera / Image
Yes	Pan, Tilt, Zoom, Focus, Preset Control	Exposure, White Balance, Image Process
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS

General

Power Requirement	Power Consumption	PoE
AC100-204V to DC 12V / 5A and above	40W	POE++(IEEE 802.3bt)
Dimensions (W x H x D)	Net Weight	Housing Material
273.57 x 233.4 x 160 mm	3kg	Anti-UV
Application	IR Night Vision	Security
Indoor	Yes	Kensington Slot
IR Remote Control	Remote Control	Operating Conditions
Yes	Infrared	Temperature: 0 °C to +40 °C ; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution	Network Video Compress Formats	Maximum Frame Rate
4K 30fps	H.264, H.265	4K 30fps
Multi-Stream Capability	Network Protocols	Network Interface
2 (RTSP / Web Page), 4K 30fps (max.)	IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, VISCA over IP	10 / 100 / 1000 Base-T

USB

Connector	Video Format	Maximum Video
USB 3.0, (2) Type-A, and (2) Type-C	MJPEG, YUY2	N/A
USB Video Class (UVC)	USB Audio Class (UAC)
UVC 1.1	UAC 1.0

Software Tools

IP Search and Configuration Tool	PTZ Management AVer ViewCare	PTZ Control Panel
Support Windows^® 7 or later	Support Windows^® 7 or later	Supports iOS & iPadOS^® 11 or later

Warranty

Camera	Accessories
3 Years	1 Year

Package Contents

Camera, Remote Control, Power Adapter, Power Cord, Cable Fixing Plate, Cable Tie (x6), M2 x 4mm Screw (x2), Quick Start Guide

Optional Accessories

AVer CL01 PTZ Camera Controller, L-Type Wall Mount, Ceiling Mount Bracket

Ordering info

Part number
PAMD720UIS

*Specifications may vary depending on location and are subject to change without notice. ** The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.
