Expand Your Horizons: USB 3.0 Extension for PTZ Cameras

The AVer UE1 extends the reach of your PTZ cameras, overcoming traditional distance limitations with a seamless USB 3.0 extension solution. This unobtrusive extender kit transmits flawless USB 3.0 signals over long distances, leveraging your existing cabling. Perfect for environments with high-bandwidth connectivity, the UE1 lets you mount your PTZ cameras farther away while maintaining exceptional video quality.

Effortless Extension

Place your PTZ camera farther away while maintaining high-quality 4K video.

Effortless Extension

Place your PTZ camera farther away while maintaining high-quality 4K video.

Effortless Extension

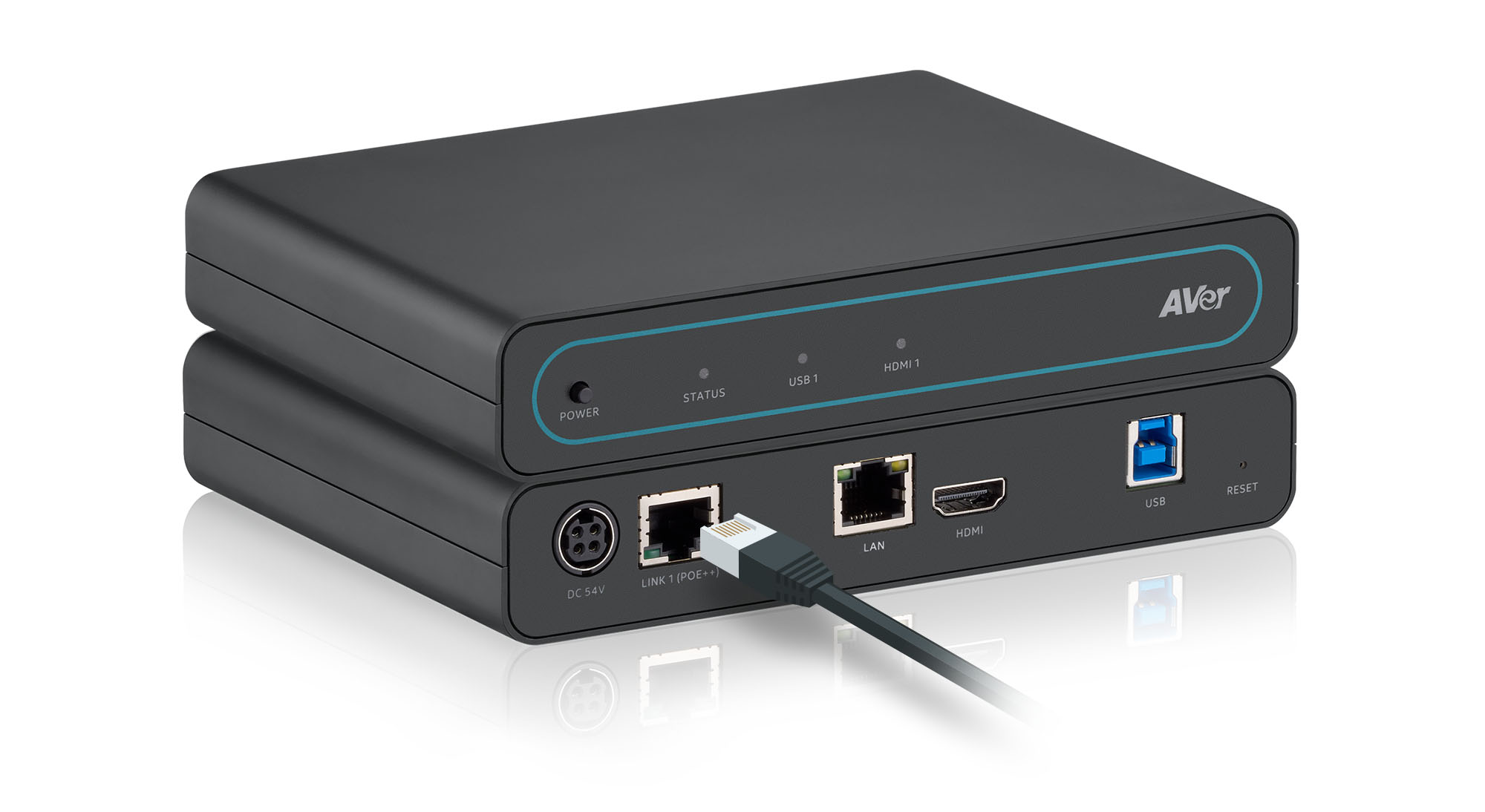

Flexible Deployment

Flexible Deployment

Utilizes readily-available CAT cabling for a cost-effective and adaptable installation.

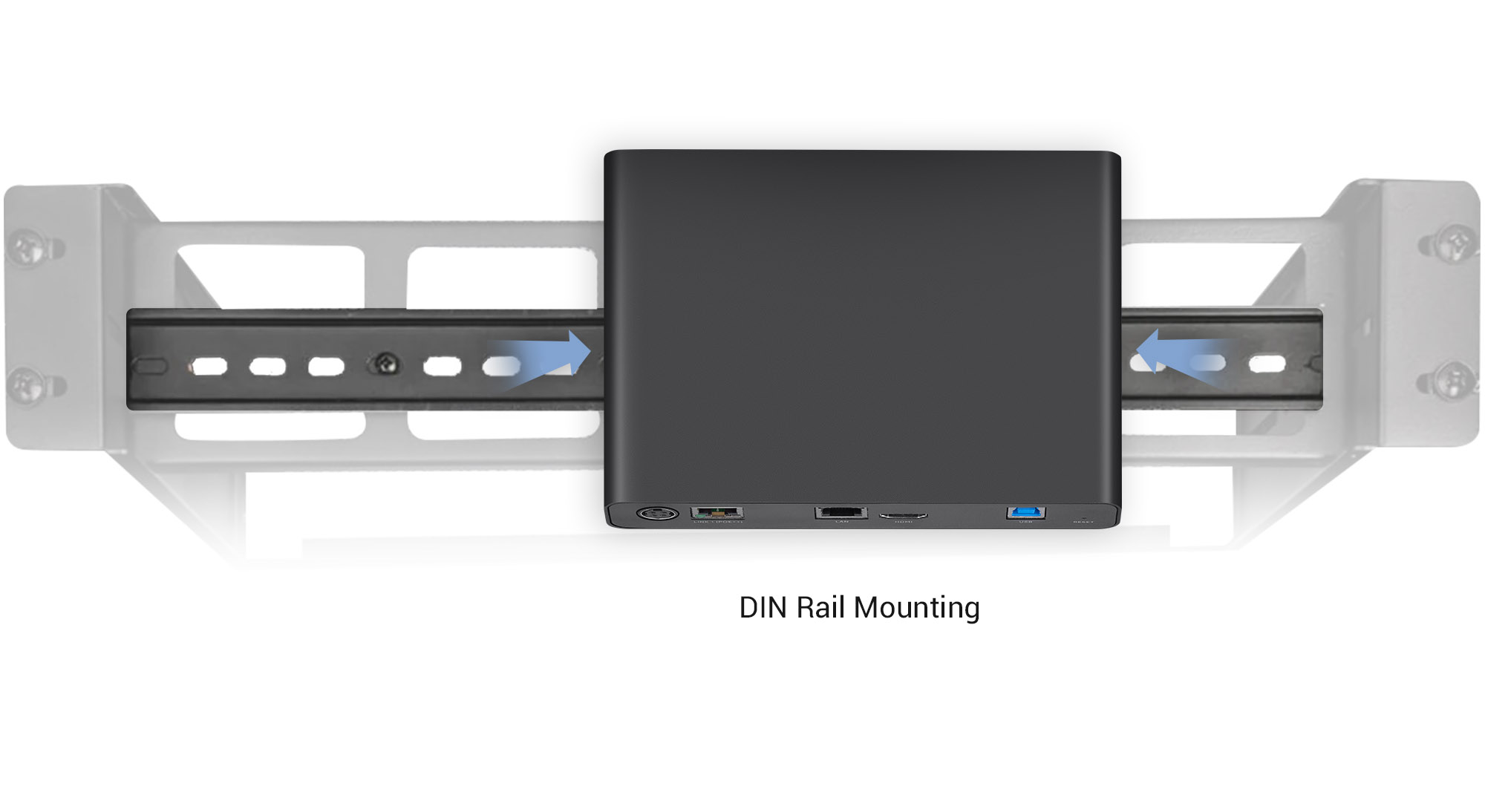

Compact Design

Compact Design

Takes up minimal space and integrates seamlessly into any environment.

Plug-and-Play Simplicity

Operates immediately upon connection, eliminating the need for installing drivers.

Plug-and-Play Simplicity

Operates immediately upon connection, eliminating the need for installing drivers.

Plug-and-Play Simplicity

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” Pro AV cameras and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

AVerCare

Specifications

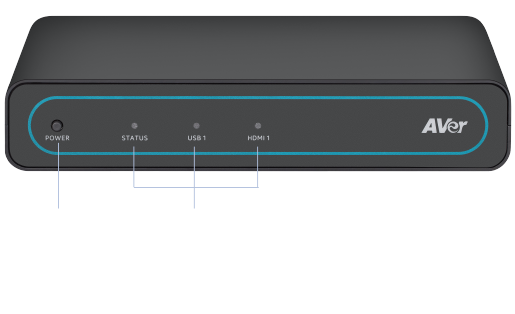

Front
Front

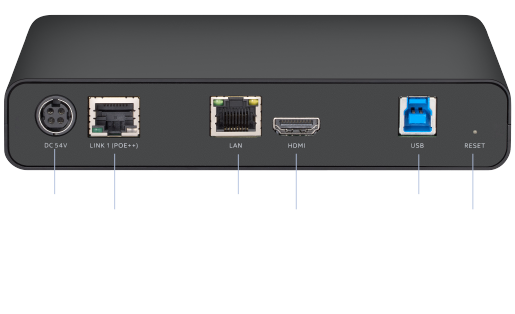

Back
Back
USB Audio Class (UAC) Protocol Power Source
USB 3.0 AC 100 - 240V to DC 54V/1.2A
USB Video Class (UVC) Protocol Power Consumption
USB 3.0 65W
Output Resolution Power Supply to Camera
USB: Up to 4K 60fps
HDMI: Up to Full HD 1080p 60fps		 PoE++
Transmission Rate Dimensions (W x H x D)
Up to 5 Gbps 164.0 x 32.5 x 118.0 mm
Network Bandwidth Net Weight
1 Gbps 2.5 kg
Transmission Distance Operating Conditions
100m (328ft.) over CAT 5e/6/7 cable Temperature: 0 °C to +40 °C
Humidity: 20% to 80%
Connections Storage Conditions
Transmitter
• Input: USB 3.0 Type-B x 1
• Output: RJ-45 x 2
• HDMI x 1

Receiver
• Input: RJ-45 x 1 		Temperature: -20 °C to +60 °C
Humidity: 20% to 95%
LED Indicators Warranty
Yes, Status and Connections LED 5 Years
Package Content
UE1, Power Adapter & Power Cord, USB 3.0 Type-A to B Cable, DIN Rail Mounting Clip, Cable Fixing Plate, Cable Tie (x3), M3 x 5.1 mm Screw (x4), Quick Start Guide
*Specifications subject to change without notice.
