4Kp60
Simultaneous output at 4Kp60 with HDMI/NDI/IP.
Harness the Magic of NDI/HX3
Includes the most recent edition of the NDI protocol is NDI® version 3 (NDI® |HX3). Features 4Kp60 NDI output with latency less than 100ms.

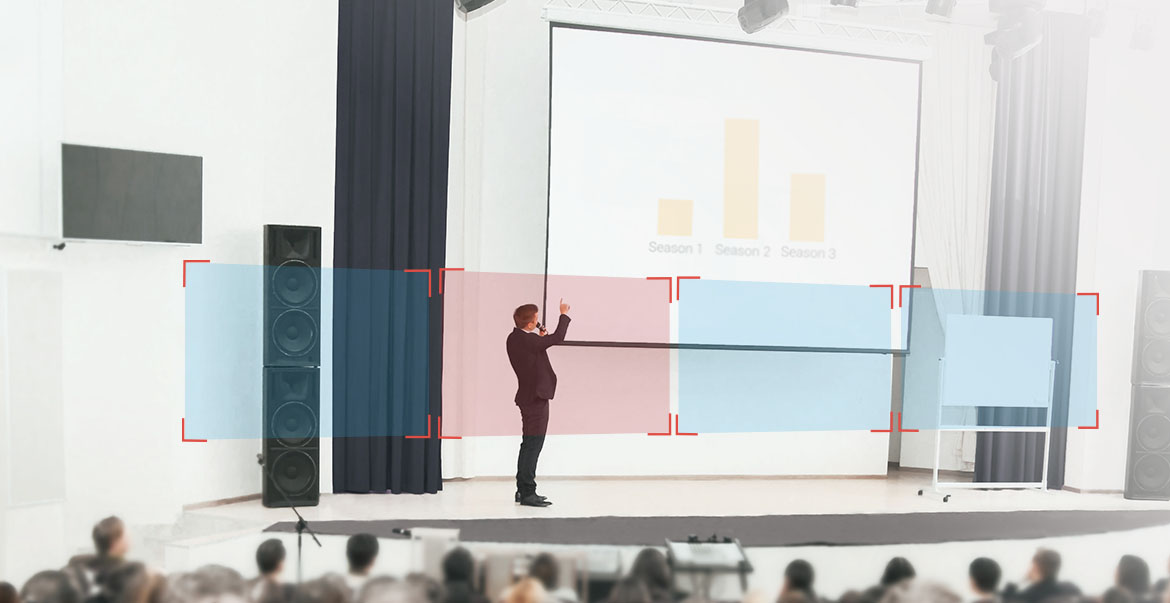

Seamless tracking between your preset zones
AVer SmartShoot uses AI functionality to optimize your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s Advanced Preset Zone Tracking, you can create an uncompromising multi-camera feel with just one PTZ310UNV2 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.
Highly versatile camera motion control

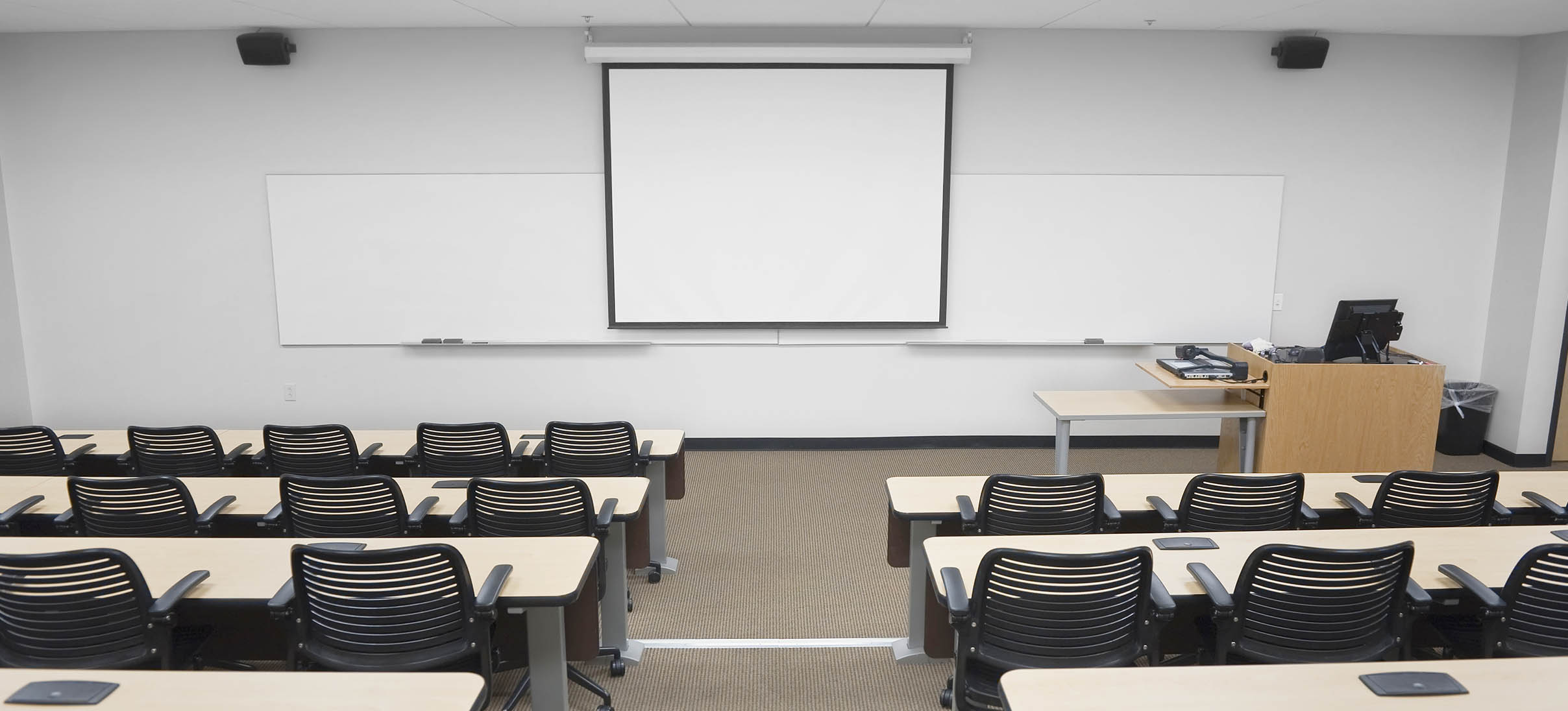

The PTZ310UNV2 advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310UNV2 is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.Prepare for any angle with outstanding preset location functionality
Preset the PTZ310UNV2 with up to 256 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
1
2
3

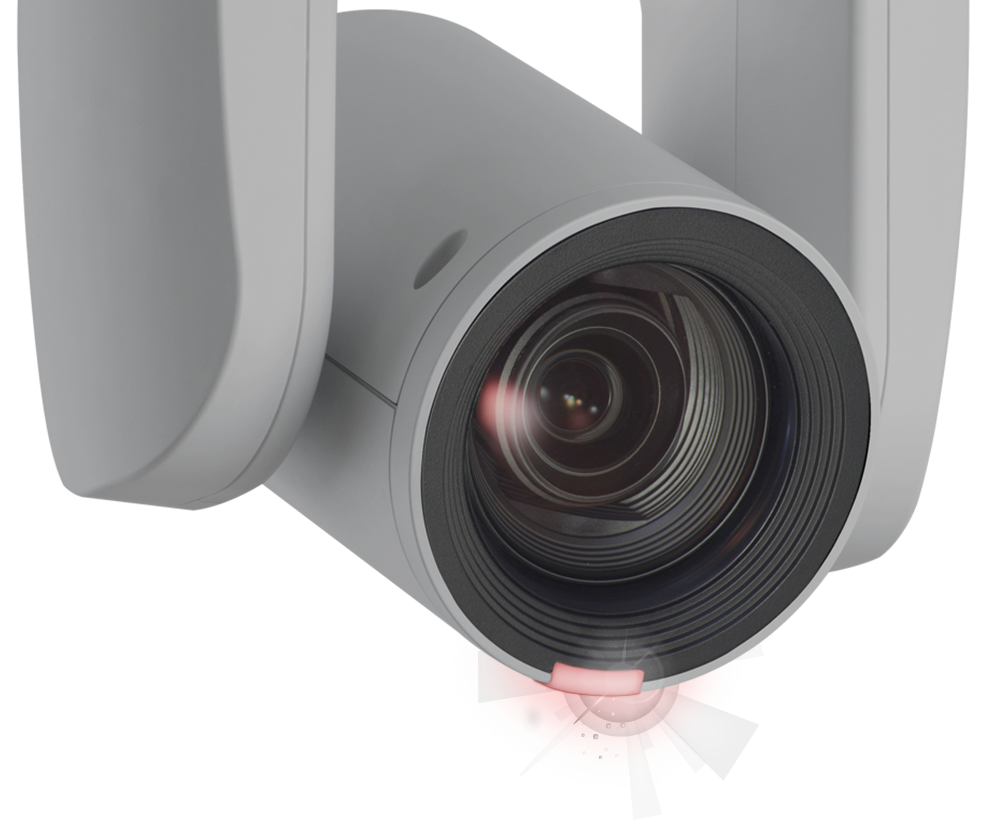

Tally light
Simplify multi-camera live video productions with an illuminated red light on the active camera.
Compatible software
Microsoft Team
Barco
Q-Sys
Crestron
Echo360
Extron
KALTURA
Panopto
vMix
ZOOM
Telestream
Newtek
Free Software for Users and AV Managers
Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.
AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!
* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.
Specifications

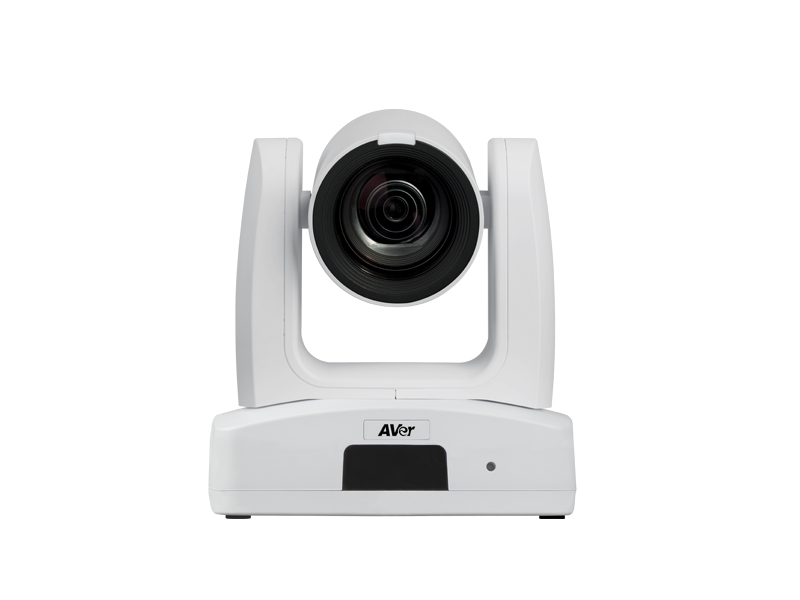

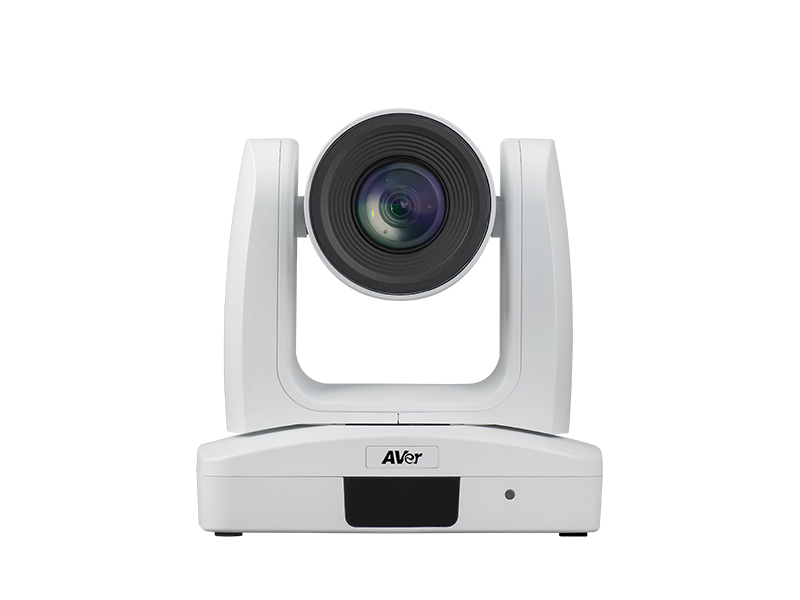

Front
Back
Camera
| Image sensor | Effective picture elements | Output resolution |
|---|---|---|
| 1/2.8” 4K Exmor CMOS | 8 megapixels | 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50 |
| Minimum illumination | S/N ratio | Gain |
| 0.46 lux (IRE50, F1.6, 30fps) | > 50dB | Auto/Manual |
| TV line | Shutter speed | Exposure control |
| 1400 (Center/Wide) | 1/1s to 1/32,000 sec | Auto, Manual, Priority AE(Shutter, IRIS), BLC, WDR |
| White balance | Optical zoom | Digital zoom |
| Auto, Manual, ATW, One Push | 12X | 1X |
| Total zoom | Viewing angles | Focal length |
| 12X | DFOV : 79.2° (Wide) to 7.5° (Tele), HFOV : 72.1° (Wide) to 6.3° (Tele), VFOV : 44.0° (Wide) to 3.7° (Tele) | f = 3.9 mm (Wide) to 46.8 mm (Tele) |
| Aperture (Iris) | Minimum working distance | Pan/Tilt angles |
| F = 1.6 (Wide) to 2.8 (Tele) | 0.3 m (Wide), 1.5 m (Tele) | Pan : ±170°, Tilt : +90° / -30° |
| Pan/Tilt speed (Manual) | Preset speed | Preset positions |
| Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec | Pan : 200° / sec, Tilt : 200° / sec | 10 (IR), 256 (RS-232, RS-422, IP) |
| Camera control - Interfaces | Camera control - Protocol | Image processing |
| RS-232 (DIN8), RS-422 (RJ45), IP | VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP) | Noise Reduction (2D / 3D), Flip, Mirror |
| Power frequencies | ||
| 50Hz, 60Hz |
AI functions
| Modes | ||
|---|---|---|
| SmartShoot |
Audio
| Channel | Codecs | |
|---|---|---|
| 2ch stereo | AAC-LC |
Interface
| Video output | Audio output | Audio input |
|---|---|---|
| 3G-SDI, HDMI, IP, USB | 3G-SDI, HDMI, IP, USB | MIC in, Line in |
General
| Power requirement | Power consumption | PoE |
|---|---|---|
| AC100 - 240V to DC 12V/2A | 19W | PoE+ |
| Dimensions (W x H x D) | New weight | Application |
| 180.0 x 192.0 x 145.0 mm | 2.0 (±0.1) kg | Indoor |
| Tally light | Security | Remote control |
| Yes | Kensington Slot | Infrared |
| Operating conditions | Storage conditions | |
| Temperature: 0 °C to +40 °C; Humidity: 20% to 80% | Temperature: -20 °C to +60 °C; Humidity: 20% to 95% |
IP streaming
| Resolution | Network video compress format | Maximum frame rate |
|---|---|---|
| 4K 60fps | H.264, H.265, MJPEG | 4K 60fps |
| Bit-rate control mode | Range of bit-rate setting | Network interface |
| VBR/CBR (Selectable) | 512 Kbps to 120 Mbps | 10 / 100 / 1000 Base-T |
| Multi-stream capability | Network protocol | NDI®|HX3 capability |
| 5: HDMI / RTSP / NDI HX2 / USB(4Kp60) & 3G-SDI(1080P60) or 4: HDMI / RTSP / NDI HX3(4Kp60) & 3G-SDI(1080P60) |
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP | Yes |
| NDI® Genlock capability | ||
| Yes* (Ready in 2023 Q2) |
USB
| Connector | Video formats | Maximum video resolution |
|---|---|---|
| USB 3.0 Type-B | MJPEG, YUY2 | 2160p |
| USB video class (UVC) | USB audio class (UAC) | |
| UVC 1.1 | UAC 1.0 |
WebUI
| Live video preview | Camera PTZ control | Camera/Image adjustment |
|---|---|---|
| Yes | Pan, Tilt, Zoom, Focus, Preset Control | Exposure, White Balance |
| Network configuration | ||
| DHCP, IP Address Gateway, Subnet Mask, DNS |
Software tools
| IP Search and Configuration Tool | PTZ Management | PTZ Control Panel |
|---|---|---|
| Support Windows® 7 or later | Support Windows® 7 or later | Supports iOS & iPadOS® 11 or later |
| PTZ Link | OBS Plugin for PTZ Cameras | CaptureShare |
| Supports Windows® 7 or later, macOS® 10.14 or later | Supports Windows® 8 or later, macOS® High Sierra v10.13 or later | Supports Windows® 7 or later, macOS® 10.14 or later |
Warranty
| Camera | Accessories | |
|---|---|---|
| 5 Years | 1 Year |
Package contents
| Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4) |
Optional accessories
| AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount |
Ordering info
| Part number | ||
|---|---|---|
| PT310UNV2 |
*Specifications subject to change without notice.
Package contents
Camera
Drilling Paper
Quick Guide
Cable Fixing Plate
M3 x 6mm Screw (x3)
Power Adapter & Power Cord
M2 x 4mm Screw (x3)
1/4"-20 L=6.5mm Screw (x2)
Remote Control
DIN8 to D-Sub9 Cable
SKU: PTDIN8PT1
RS-232 In/Out Y Cable
SKU: PTRSINOUT
Cable Tie (x4)
Ceiling Mount Bracket (x2)
Optional accessories
Wall Mount Bracket (Black)
SKU: COMSVCMNT Install Guide-
Wall Mount Bracket (White)
SKU: PTMLTWM02 Install Guide
CL01 Camera Controller
SKU: PTCAMCTRL
PTZ211
12X HD AI PTZ camera
MD120UI
20X 4K Medical PTZ camera
MD330UI
30X 4K Medical PTZ camera
MD330U
30X 4K Medical PTZ camera
MD720UIS
20X 4K Medical PTZ camera
PTZ310UV2
12X 4K AI PTZ camera
PTZ330UNV2
30X 4K AI PTZ camera
PTZ330UV2
30X 4K AI PTZ camera
TR313V2
12X Ultra HD auto tracking PTZ camera
TR335
30X 4K PTZ live streaming camera
TR315
12X 4K PTZ live streaming camera
TR323NV2
21X 4K NDI PTZ live streaming camera
TR211
12X HD PTZ streaming camera
About NDI
NDI is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.
*NDI is a registered trademark of NewTek.
