Multi Camera Video & Voice Tracking
Multiple Sources Audio Mixing
Dual Independent Outputs
4k Ultra HD Output
Dante AV-H Ready
NDI HX3
AI-Driven Auto Switching
Automatically detects and tracks active speakers using advanced AI voice tracking, intelligently switching between multiple camera feeds in real time for a seamless, professional viewing experience without manual operation required.
FaceFocus: Capture Everyone Face Front.
IntelliSwitch: Smooth Transitions for Steady Viewing.
InstaConfig: Auto Mapping for Faster Deployment.

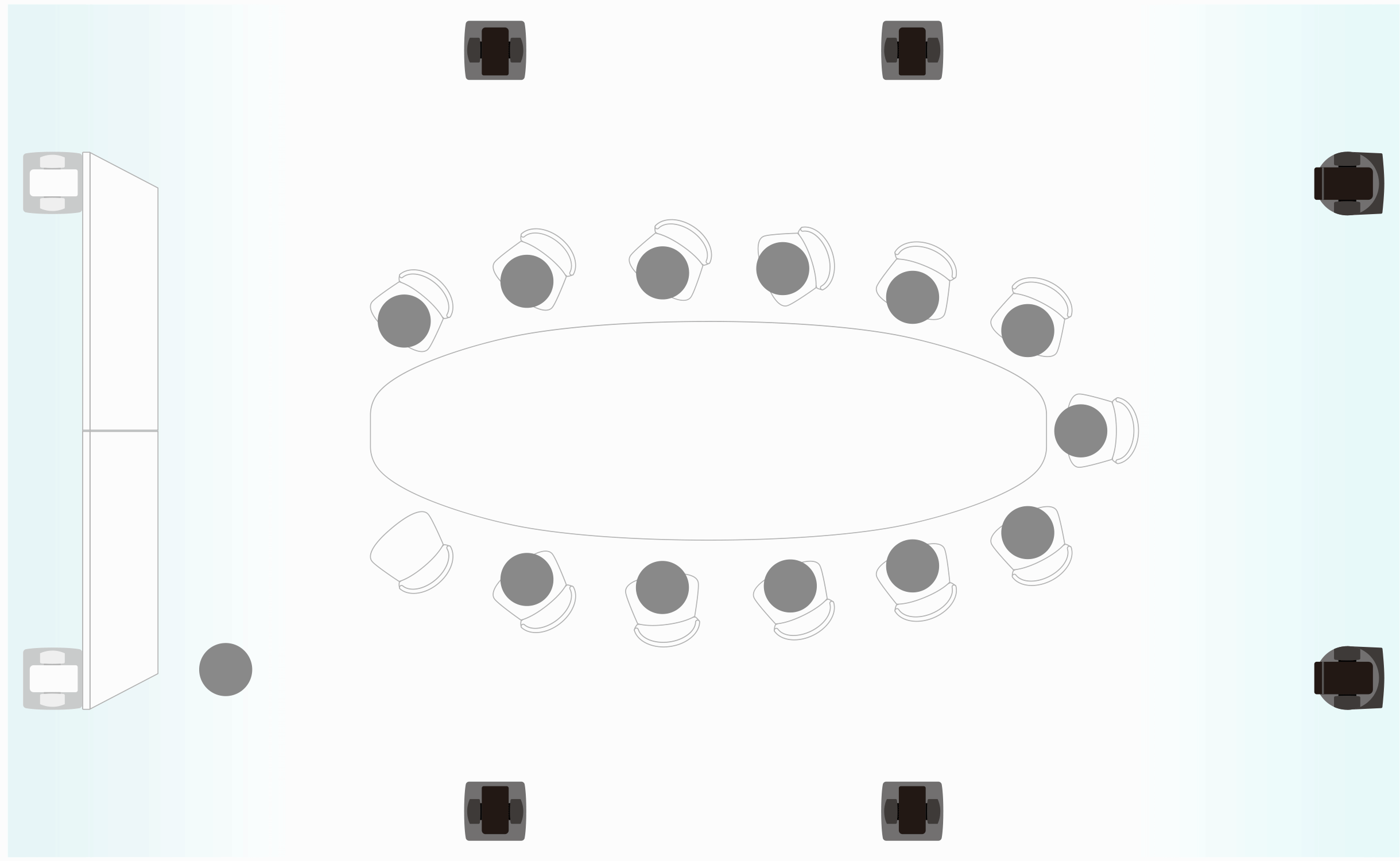

FaceFocus AI selects, from multiple cameras, the view where the speaker’s face is most front-facing. This front-face experience lets remote participants see expressions and eye contact more clearly, improving comprehension and engagement without operators searching for the right angle.

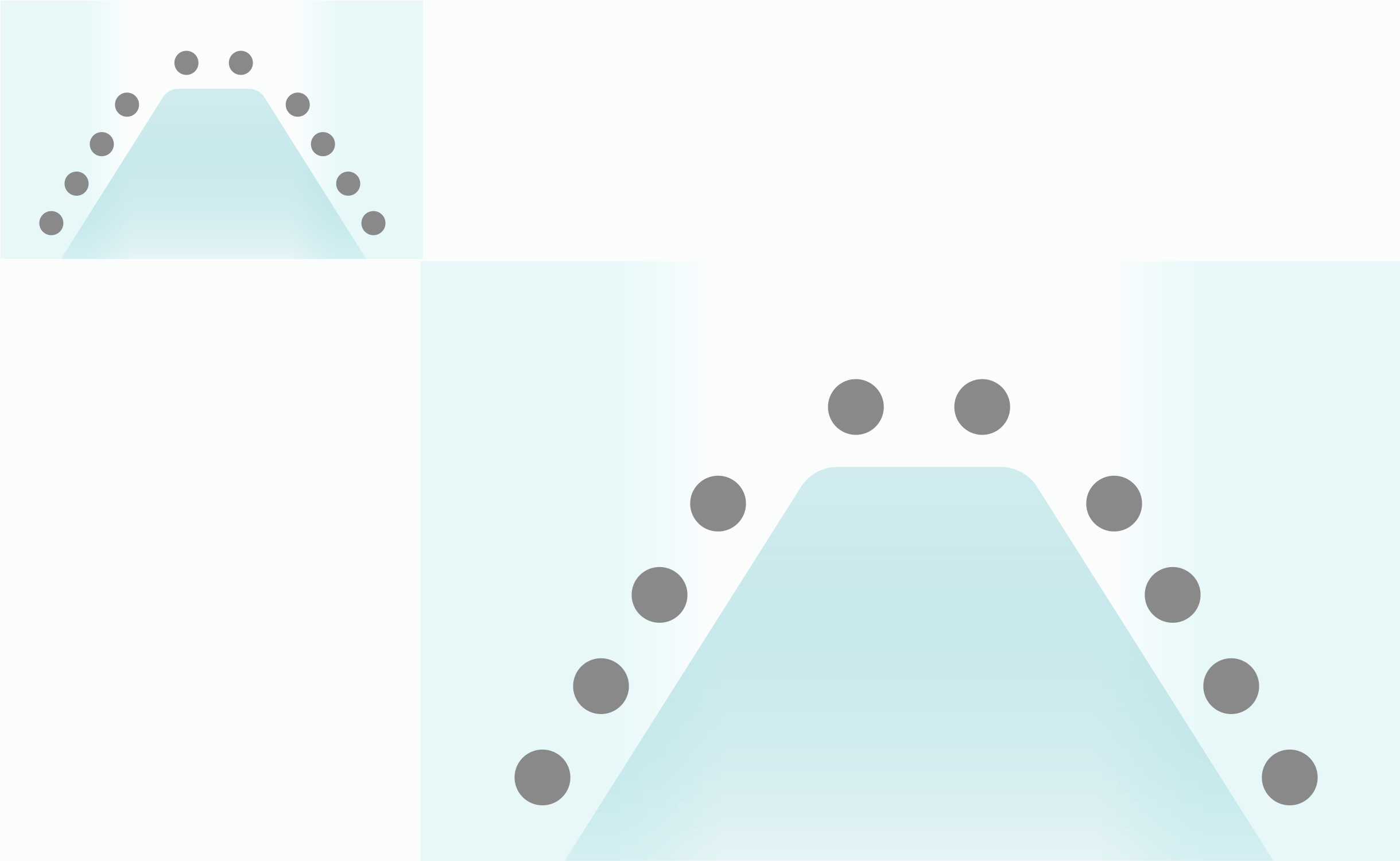

IntelliSwitch intelligently coordinates between active cameras, dynamically selecting the optimal view of the newly active speaker. Unlike a single camera swinging back and forth, this ensures subtle movements and smooth transitions — so viewers stay focused during panel discussions and multi-presenter events.

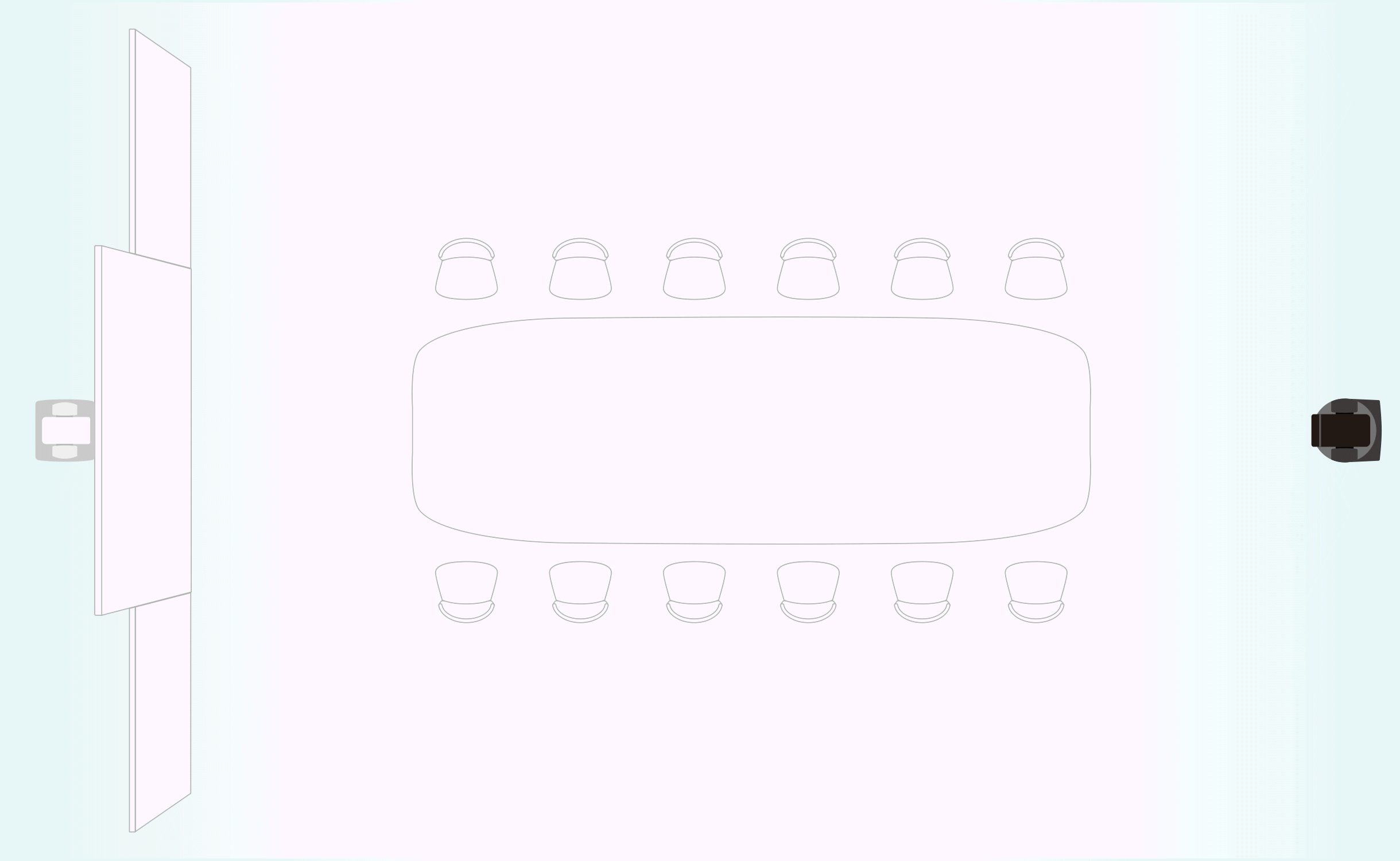

InstaConfig speeds up system setup by analyzing connected cameras and microphones, then suggesting how camera presets should map to microphone channels. This AI-enhanced feature cuts repetitive manual preset configuration and helps integrators get complex AV rooms ready faster.

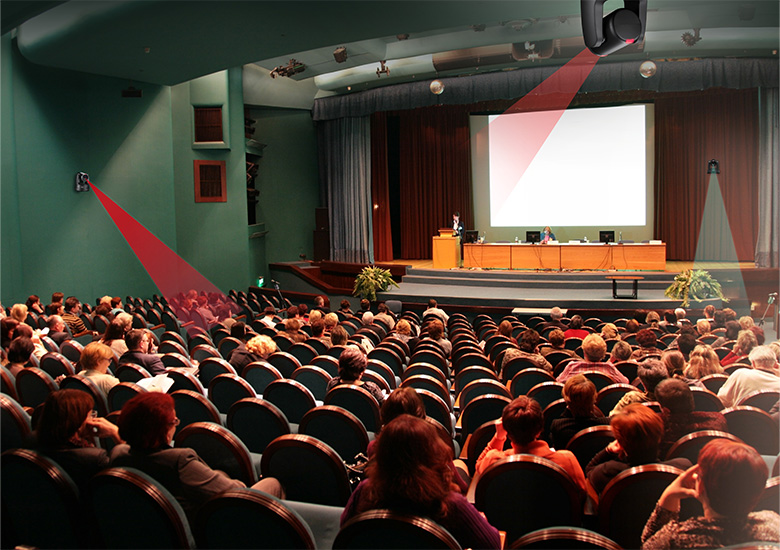

AI-Driven Auto Switching
Automatically detects and tracks active speakers using advanced AI voice tracking, intelligently switching between multiple camera feeds in real time for a seamless, professional viewing experience without manual operation required.

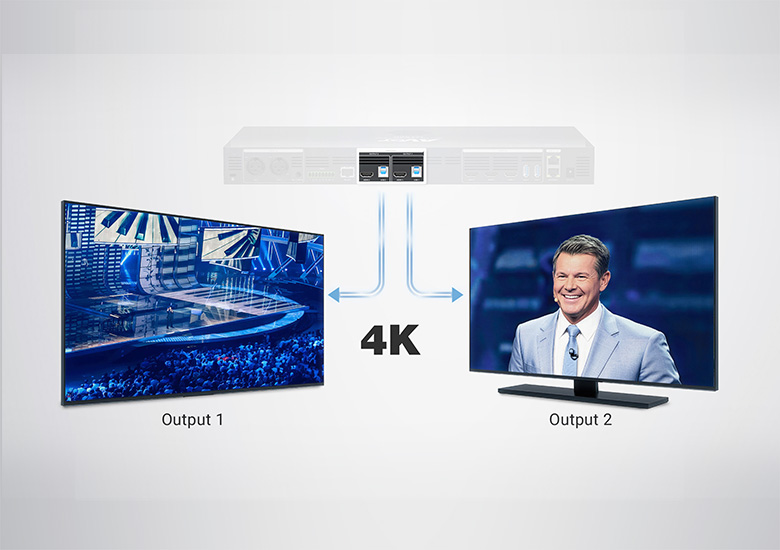

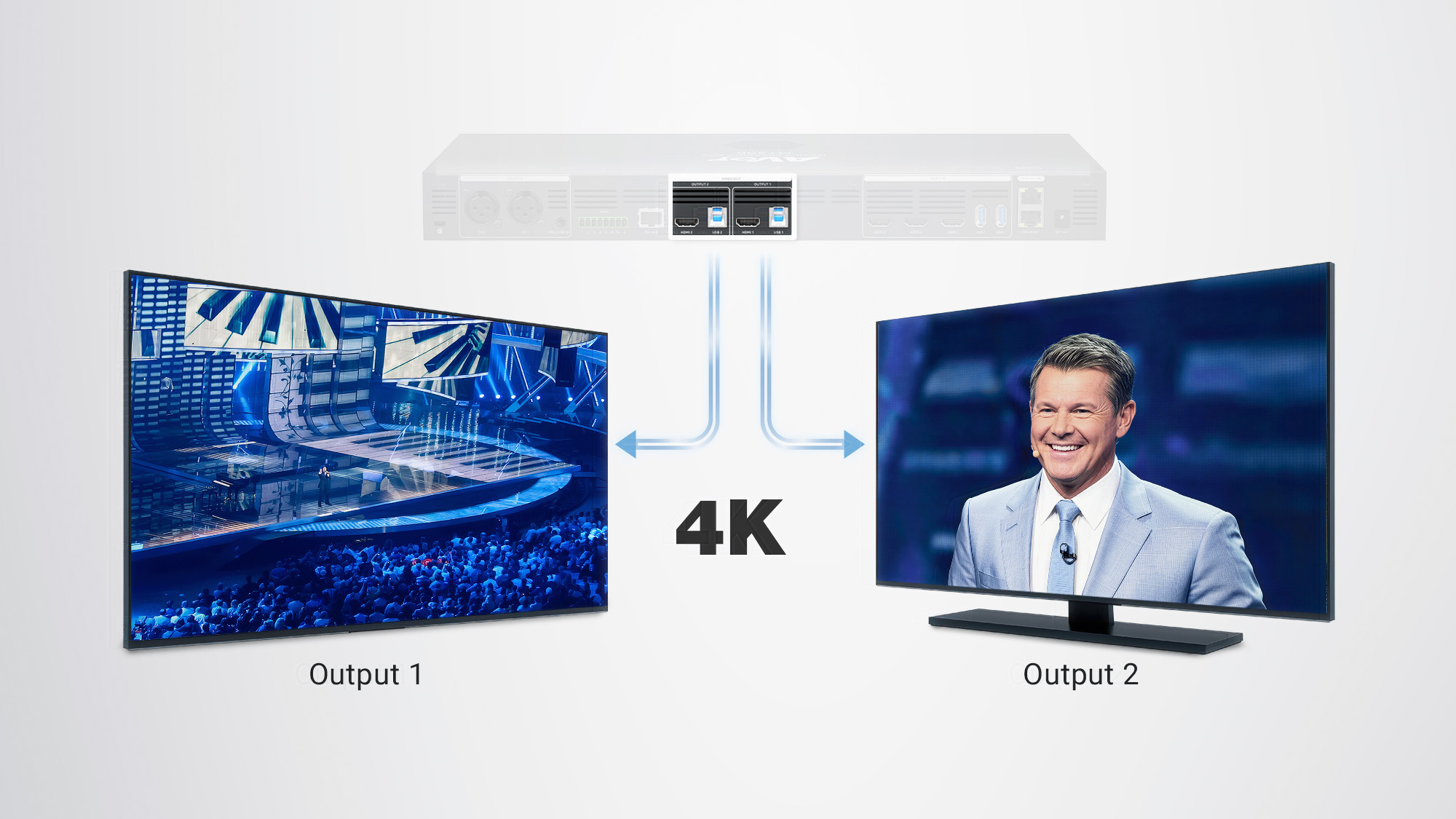

Dual Independent 4K Outputs
Simultaneously deliver two distinct 4K video feeds,enabling one output for in-room displays and another for recording, streaming, or remote audiences—ensuring flexible, high-quality content distribution across any environment.
Dual Independent 4K Outputs
Simultaneously deliver two distinct 4K video feeds, enabling one output for in-room displays and another for recording, streaming, or remote audiences—ensuring flexible, high-quality content distribution across any environment.

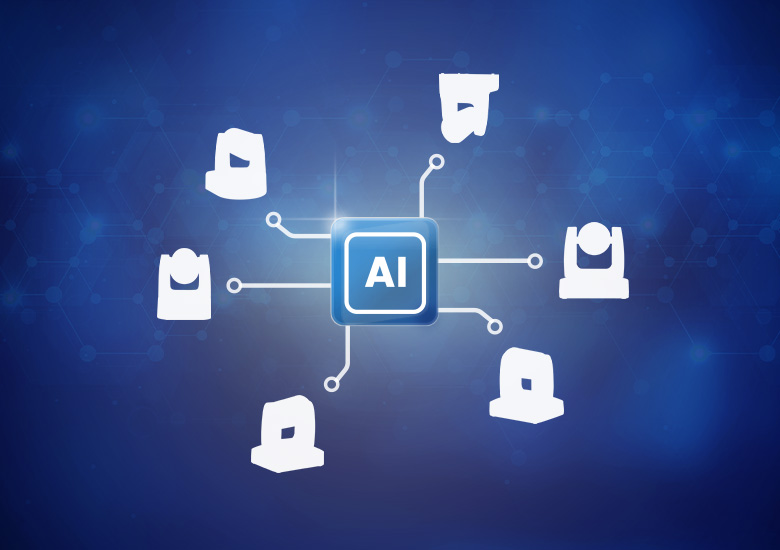

Operator-Free Production
Automates multi-camera production with intelligent AI tracking and switching, reducing the need for dedicated AV staff while maintaining a professional, broadcast-quality experience.

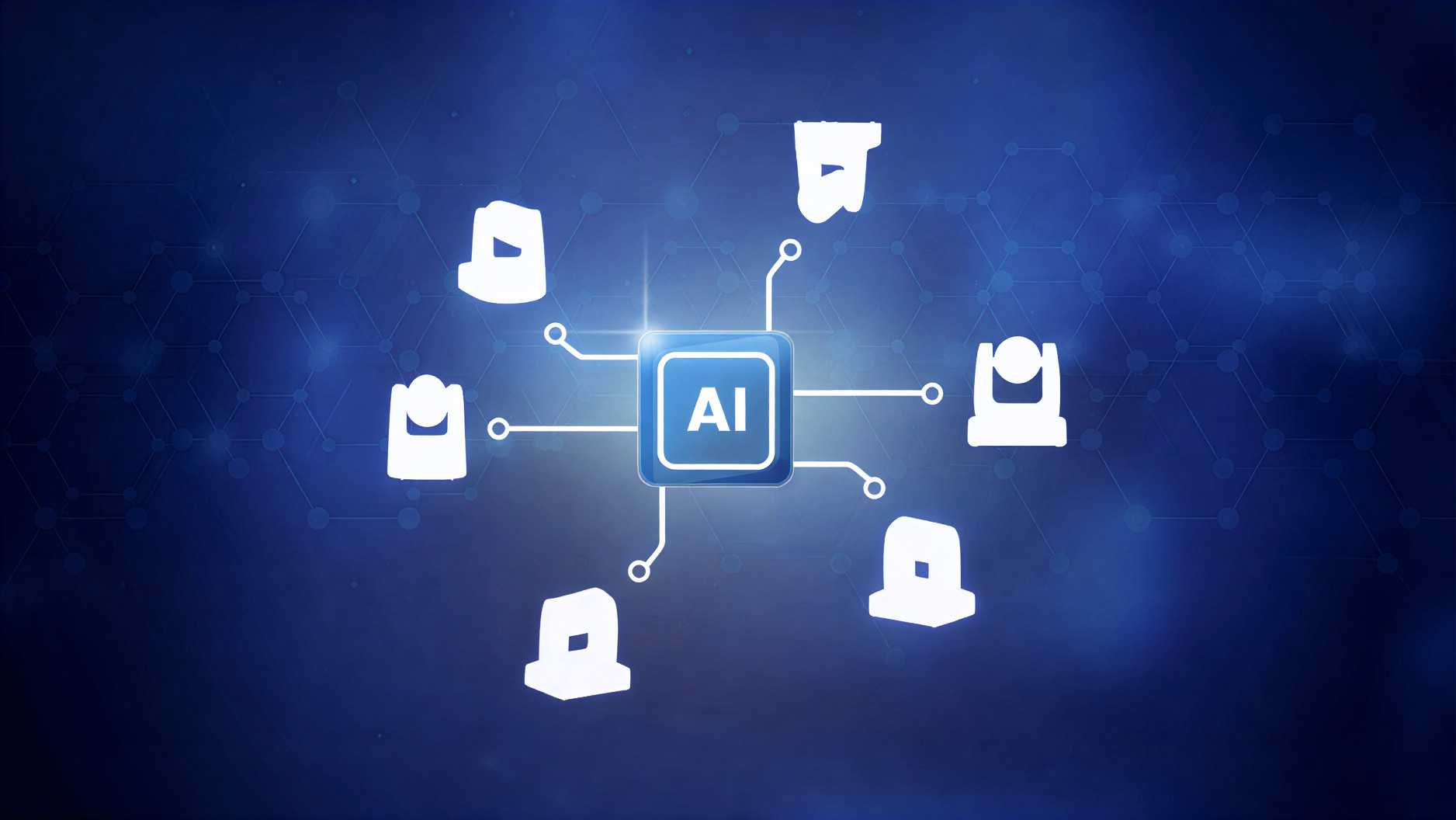

Operator-Free Production
Automates multi-camera production with intelligent AI tracking and switching, reducing the need for dedicated AV staff while maintaining a professional, broadcast-quality experience.
AV-over-IP Integration
Supports NDI®, Dante®, and Dante AV-H for seamless integration into modern AV-over-IP systems, enabling flexible, high-quality audio and video distribution across networked environments.
Scalable Multi-Camera Support
Connect and manage multiple cameras within one centralized system, making it easy to scale for large spaces, multi-presenter setups, and complex AV environments.
Scalable Multi-Camera Support
Connect and manage multiple cameras within one centralized system, making it easy to scale for large spaces, multi-presenter setups, and complex AV environments.
Enjoy the unprecedented quality and support
AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!
* 5-year protection is included only on “V2” Pro AV cameras and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.
Specifications

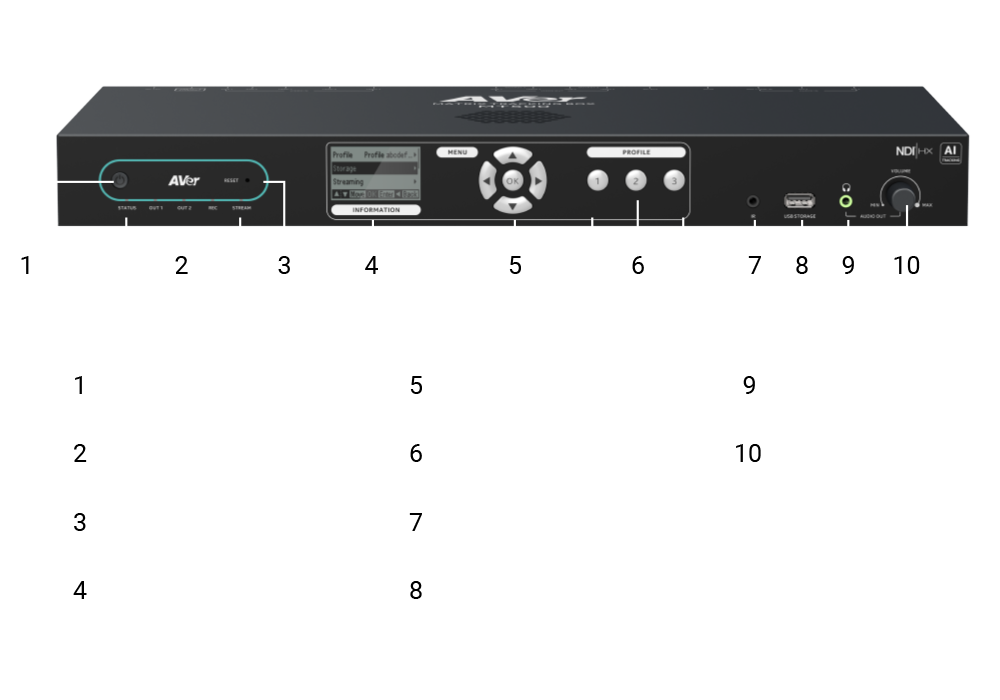

Front

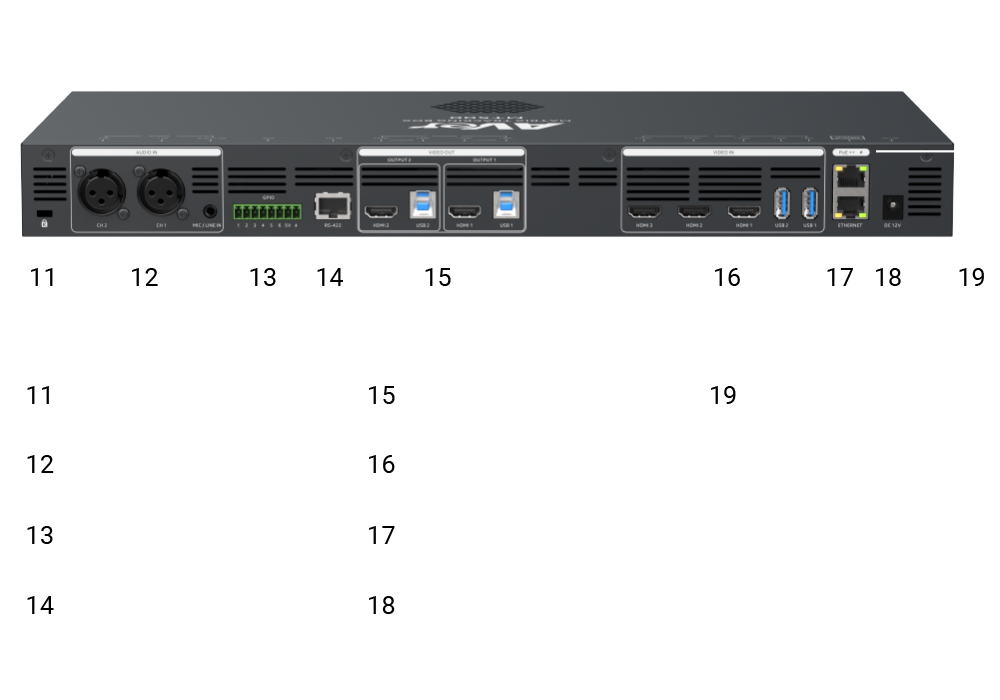

Back
Video Inputs
| Physical Input Connectors | IP Stream Inputs | Display Capabilities |
|---|---|---|
| USB 3.0 Type-A x 2, HDMI® 2.0 x 3 | Up to 25 | IP/USB x 8 + HDMI® x 3 |
| AV-over-IP Protocols | ||
| RTSP, NDI® HX2, NDI® HX3, Dante® AV-H |
Video Onputs
| Physical Output Connectors | AV-over-IP Protocols | Dual Independent Outputs |
|---|---|---|
| HDMI® 2.0 x 2, USB 3.0 Type-B (UVC/UAC) x 2, IP x 2 | RTSP, RTMP, HLS, NDI® HX2 | Content 1: HDMI® 1/USB 1/IP 1 Content 2: HDMI® 2/USB 2/IP 2 |
Supported Resolutions & Codecs
| Resolution | Codecs | |
|---|---|---|
| Up to 4K 60fps | H.264, H.265, MJPEG |
Audio
| Analog Audio I/O | Dante® Audio | USB Audio Bypass |
|---|---|---|
| XLR Balanced in x 2, 3.5 mm Mic/Line in x 1, 3.5 mm out x 1 | Yes | Bi-directional UAC |
| Audio Mixing | ||
| 8CH Matrix Mixer |
Layout Engine
| Auto Layouts | Manual Layouts | |
|---|---|---|
| 6 (Single, Side-by-Side, Active Speaker, PiP, Customize, Advanced) | 7 (Single, Side-by-Side, Main Speaker-3 Inputs, Main Speaker-4 Inputs, PiP, Quad View, Advanced) |
I/O Interfaces
| GPIO | RS-422 | Ethernet |
|---|---|---|
| 6-Pin Configurable | 1 | 1 |
| PoE++ | ||
| 1 (IEEE 802.3bt Class 5, 41.1V to 57V 1.5A) |
Control & Management
| Protocols | Management | On-Device Controls |
|---|---|---|
| VISCA over IP, CGI | Web UI | Via Buttons, LCM Screen |
Recording & Storage
| Local Recording | Network Recording | |
|---|---|---|
| Direct to USB Storage Device | Direct to NAS |
AI Features
| FaceFocus | IntelliSwitch | InstaConfig |
|---|---|---|
| Yes | Yes | Yes |
Software Tools
| Device Utility | Enterprise Management | Room Management |
|---|---|---|
| Supports Windows® 10 or later, macOS® 10.14 or later | Supports Windows® 10 or later | Supports Windows® 7 or later, macOS® 11.6 or later |
| Cloud Management | MT Control Panel | PTZ Link Premium |
| Supports Chrome™ & Microsoft Edge browsers | Supports Windows® 7 or later, macOS® 10.14 or later, Android™ 8.0 or later | Built-in for Voice Tracking |
General
| LCM Screen | Buttons | LED Indicators |
|---|---|---|
| Yes, 2-inch | Menu, Profile, Power, Reset, Volume Knob | Status, Output 1, Output 2, Record, Stream |
| Dimensions (W x H x D) | Net Weight | Power Requirement |
| 227.1 x 44.0 x 430.0 mm | 2.48 (±0.1) kg | AC 100 - 240V to DC 12V/7.5A |
| Power Consumption | Security | Operating Conditions |
| 23 W | Kensington Slot | Temperature: 0 °C to +40 °C Humidity: 20% to 80% |
| Storage Conditions | Installation Methods | |
| Temperature: -20 °C to +60 °C Humidity: 20% to 95% |
Rack Mounted, Under the Table, Inside the Podium, Behind the Display |
Warranty
| MT500 | Accessories | |
|---|---|---|
| 5 Years | 1 Years |
Other
| Package Contents | Optional Accessories | |
|---|---|---|
| MT500, Power Adapter, Power Cord, Cable Fixing Plate, Cable Tie (x9), 3.0 x 5 mm Truss Head Screw (x10), M3 x 10 mm Screw (x4), Rack Mount Bracket (x2), USB 3.0 Type-A to Type-B Cable (x2), Phoenix® Combicon 8-pole Connector, Quick Start Guide | 3.0 x 5 mm Flat Head Screw (x3), 3.0 x 5 mm Truss Head Screw (x2) |
*Specifications subject to change without notice.
