8MP
Camera360°
Swivel HeadUSB
ConnectivityUHD
60
FPSUVC/UAC
Compliant
Compact. Portable. Affordable.
The M5 is a plug-n-play, easy-to-use, yet high-quality document camera that is perfect to help keep students engaged during instruction time. With an 8MP camera putting out Ultra High Definition (UHD) resolution and frame rates up to 60FPS, content is clear, crisp and smooth, while the 360° swivel camera head allows you to point the camera in any direction in the room.
Simple connectivity, power and compatibility
The M5 can fold down to a small fraction of its original size, making it easy to transport. Bring to class or take home, the M5 can fit into just about any briefcase, purse, and even some pockets.
Compact and foldable design
The M5 can fold down to a small fraction of its original size, making it easy to transport between school and home. Bring to class or take to home, the M5 can fit into just about any briefcase, purse, even some pockets.
Hybrid learning ready

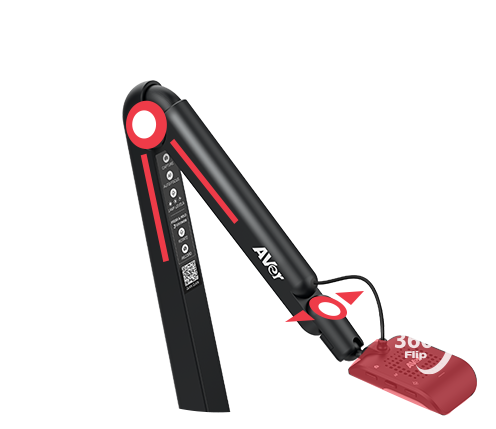

The M5 is UVC/UAC compliant with plug and play USB connectivity and features a built-in mic. The 360° swivel camera head easily allows you to point the camera in any direction to capture documents and objects, but can be quickly used a high definition web cam to show live teacher or presenter activities. It supports integration with all popular video conferencing applications such as Zoom™, Google Meet™ and Microsoft Teams™ so you’re ready to tackle distance learning.
Simple One-Touch Software
Add interactivity to your F50+ with the free AVerTouch software for Windows and Mac. Build and edit new creative content with powerful multitasking and editing tools, capture images and record full videos with audio, then save to the cloud with a simple click.
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.Broadneck Elementary School | Read Case Studies
Specifications
| Sensor1/3.2" CMOS | Pixel count8 megapixels |
|---|---|
| Zooming16X digital zoom | Shooting areaLarger than A3, 420mm x 315mm (16.53” x 12.4”) |
| Image | |||||
|---|---|---|---|---|---|
| Sensor | 1/3.2” CMOS | Pixel count | 8MP | Frame rate | Max. 60fps @1920x1080 Max. 15fps @3264x2448 |
| Output resolution | 3264x2448, 1920x1080, 1280x1024, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x184, 320x180 | ||||
| Optics/Mechanism | |||||
|---|---|---|---|---|---|
| Focus | Auto (button)/Manual via software) | Zoom | 16X Digital Zoom (via software) | Shooting area | Larger than A3, 420mm x 315mm (16.53” x 12.4”) |
| Lighting | |||||
|---|---|---|---|---|---|
| Lamp Type | Adjustable Ring LED(3 levels) | ||||
| Input/Output Connections | |||||
|---|---|---|---|---|---|
| Mic | Built-in | USB | USB 2.0 (for power and computer connectivity) | ||
| Others | |||||
|---|---|---|---|---|---|
| Operating (L x W x H) | 313.4mm x 108.6mm x 370.0mm Folded (L x W x H) (12.34” x 4.28” x 14.57”) |
Folded (L x W x H) | 115.9mm x 108.6mm x 323.6mm (4.56” x 4.28” x 12.74”) |
||
| Net weight | 0.78kg (1.72lbs) | Gross weight | 1.1kg (2.42lbs) | Software | AVerTouch |
| Power source | USB 2.0, 5V/0.5A | Consumption | 1.7Watts (lamp on) 1.3Watts (lamp off) |
Operating conditions | Temperature: 0°C to +40°C (+32°F to +104°F)** Humidity: 10% to 90% |
| Storage conditions | Temperature: -30°C to +60°C (-22°F to +140°F) Humidity: 10% to 90% |
Warranty | 1 Year | Ordering Info | SKU: VISIONM05 |
| Optional accessories | |||||
|---|---|---|---|---|---|
| Carrying bag | Part number: VISIOCPCC | Anti-glare sheet | Part number: PANTIGLA1 (A5 size 8.26" x 5.84") | ||
Note: Specifications subject to change without notice
