13
Mega Pixel60
FPS23x
Digital Zoom4K
Resolution
Ignite inquisitive minds
Visuals so life-like that students feel immersed from any seat in the classroom. Learn and discover more with F17+’s advancing classroom visual technology. The 13 MP , 23X digital zoom, and flexible neck provide fantastic clarity for any objects of interest. The 60fps also offer great flexibility for sharing over any video platforms for remote students.
Catch all the details
Zoom in and capture engaging details with F17+'s powerful 13 megapixel sensor and 23x digital zoom.

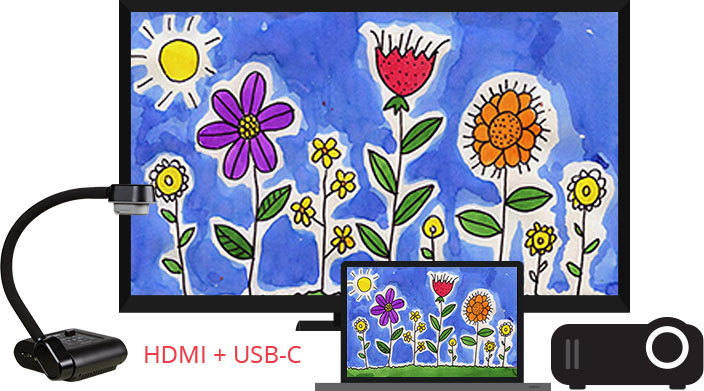

Easy to connect, easy to display
Connect with the convenience of HDMI or USB-C to your projector, monitor, or computer.

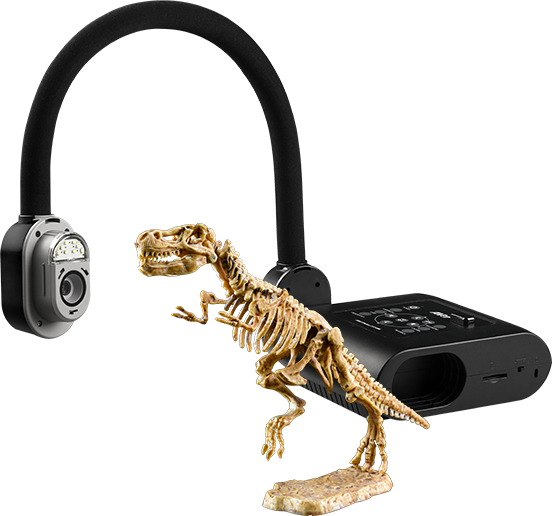

Learn from any angle
Create dynamic lessons with a flexible gooseneck that gives you a wide range of motion allowing your students to see details from all angles.

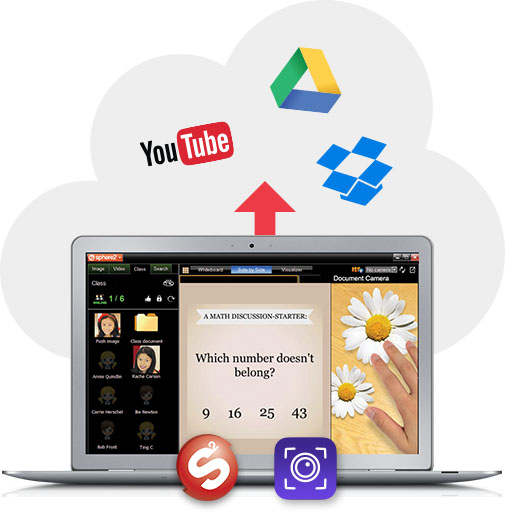

Create exciting moments
Use AVer's exclusive Sphere2 & AVerTouch Software Suite to create, collaborate, upload, and share your lesson plan materials through sites such as YouTube, Google Drive and Dropbox.

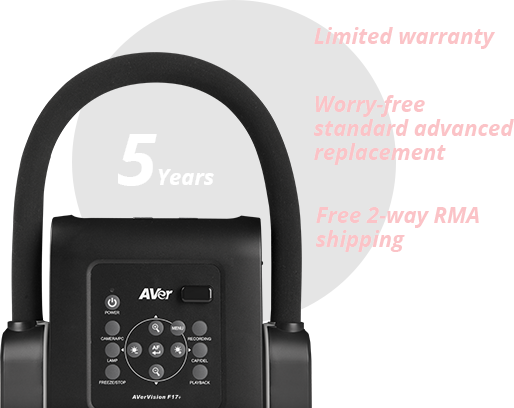

America's best document camera warranty program
The F17+ has the industry's only 5-year bumper-to-bumper (all-inclusive) doc cam warranty with 5-year free 2-way RMA shipping and 5-year worry-free standard advanced replacement program.
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.Broadneck Elementary School | Read Case Studies
With a compact and robust design and free software for screencasting, manipulating and sharing video, the AVer F17HD is one of the best HD cameras available.Fractus Learning | Read Case Studies
Specifications
| Sensor1/3.06" CMOS | Pixel count13 megapixels |
|---|---|
| Zooming23X digital zoom | Shooting areaMax. 23.82" x 15.95" (605mm x 405mm) |
| Image | |||||
|---|---|---|---|---|---|
| Sensor | 1/3.06" CMOS | Pixel count | 13 megapixels | Effective pixel | 3840 H x 2160 V |
| Frame rate | 60 fps (max.) | White balance | Auto / Manual | Exposure | Auto / Manual |
| Image mode | Sharp / Graphics / Motion / Microscope | Effect | Color / B/W / Negative / Mirror / Rotate / Freeze | ||
| Optics | |||||
|---|---|---|---|---|---|
| Focus | Auto / Manual | Shooting area | Max. 23.82" x 15.95" (605mm x 405mm) | Zooming | 23X digital zoom |
| Function | |||||
|---|---|---|---|---|---|
| Image effect | Color / B&W / Negative / Mirror / Reverse / Freeze | White balance / exposure / night view | Auto / Manual | Picture-in-picture | Yes |
| Split screen | Yes | Presentation tools | Spotlight (Yes), Visor (Yes) | Capture mode | Single / Continuous |
| Remote control | Yes | Image storage | 240 Frames(XGA) ; 80 Frames(8M Pixel) | Onboard AV recording | Yes |
| Onboard annotation | No | ||||
| Compatibility | |||||
|---|---|---|---|---|---|
| Operating systems | Windows 7/10/11, MacOS X 10.15/11/12/13, Chrome OS 29 or above | AVer software | AVer A+ software suite (Sphere 2, PowerPoint plug-in, Flash-Plug-in), AVerTouch, Sphere Lite (for Chromebook) | ||
| Power | |||||
|---|---|---|---|---|---|
| Power source | DC 12V, 2A, 100-240V, 50-60Hz | Consumption | 10 Watts (lamp on); 9 Watts (lamp off) | ||
| Lighting | |||||
|---|---|---|---|---|---|
| Lamp type | LED light | ||||
| Input/Output connections | |||||
|---|---|---|---|---|---|
| HDMI input | Yes | HDMI ouput | 4k at 60 / 30 Hz, Full HD 1080p at 60 Hz, HD 720p at 60 Hz | USB 2.0 Ports | Type-A x 1 (USB Thumb Drive) Type-C x 1 (PC) |
| SD | SD/SDHC (Up to 32GB) | DC 12V input | Power Jack | MIC input | Built in & 3.5mm jack, pink |
| Dimension | |||||
|---|---|---|---|---|---|
| Operating(WxHxD) | 7.87" x 20.67" x 14.96" 200mm x 525mm x 380mm (+/-2mm include rubber foot but IR cover not included) | Folded | 9.05" x 2.87" x 12" 230mm x 73mm x 305mm (+/-2mm include rubber foot but IR cover not included) | Weight | 5.51 lbs (2.5kg) |
| External storage | |||||
|---|---|---|---|---|---|
| Secure Digital (SDHC) | 1GB ~ 32GB (FAT32) | USB Flash Drive | 2GB ~ 64GB (FAT32) | ||
| Package contents | |||||
|---|---|---|---|---|---|
| AVerVision F17+, USB Type-A to Type-C Cable, VGA Cable, Power Adapter, Remote Control, Quick Start Guide |
| Optional accessories | |||||
|---|---|---|---|---|---|
| Microscope adapter | Part number: VISIFSEMA | Carrying bag | Part number: VISIOCPCC | Anti-glare sheet | Part number: PANTIGLA1 (A5 size 8.26" x 5.84") |
| Power adapter | PPDC12VPA | ||||
| Others | |||||
|---|---|---|---|---|---|
| Warranty | 5 years | Advanced replacements | During warranty period | Free 2-way RMA shipping | Yes, during warranty period within Continental USA (including HI & AK) |
| Kensington Lock Option | Yes | Ordering Info | SKU: VISF17PLS | ||
